The YG lower reinforcing chord is a specialized load-bearing component developed for Bailey bridge systems and other modular steel bridge structures. Installed along the lower chord of a Bailey truss, it reinforces the primary tension zone, improves the rigidity of the assembled bridge, and helps the structure perform more reliably under heavy traffic, long spans, repeated loading, and demanding site conditions.
Although a Bailey bridge is built from standardized, interchangeable components, every individual member has an important structural function. The lower reinforcing chord is particularly valuable because it addresses one of the most highly stressed areas of a truss. By adding a strong and accurately manufactured reinforcement member to the lower chord, engineers can increase the effective load-bearing capacity of the bridge system without abandoning the advantages of modular construction.
This article examines the design purpose, technical characteristics, manufacturing process, installation considerations, application advantages, and selection criteria associated with the YG lower reinforcing chord. It also explains why a properly engineered reinforcement component can offer advantages over improvised strengthening methods, non-standard substitutes, and poorly matched bridge accessories.

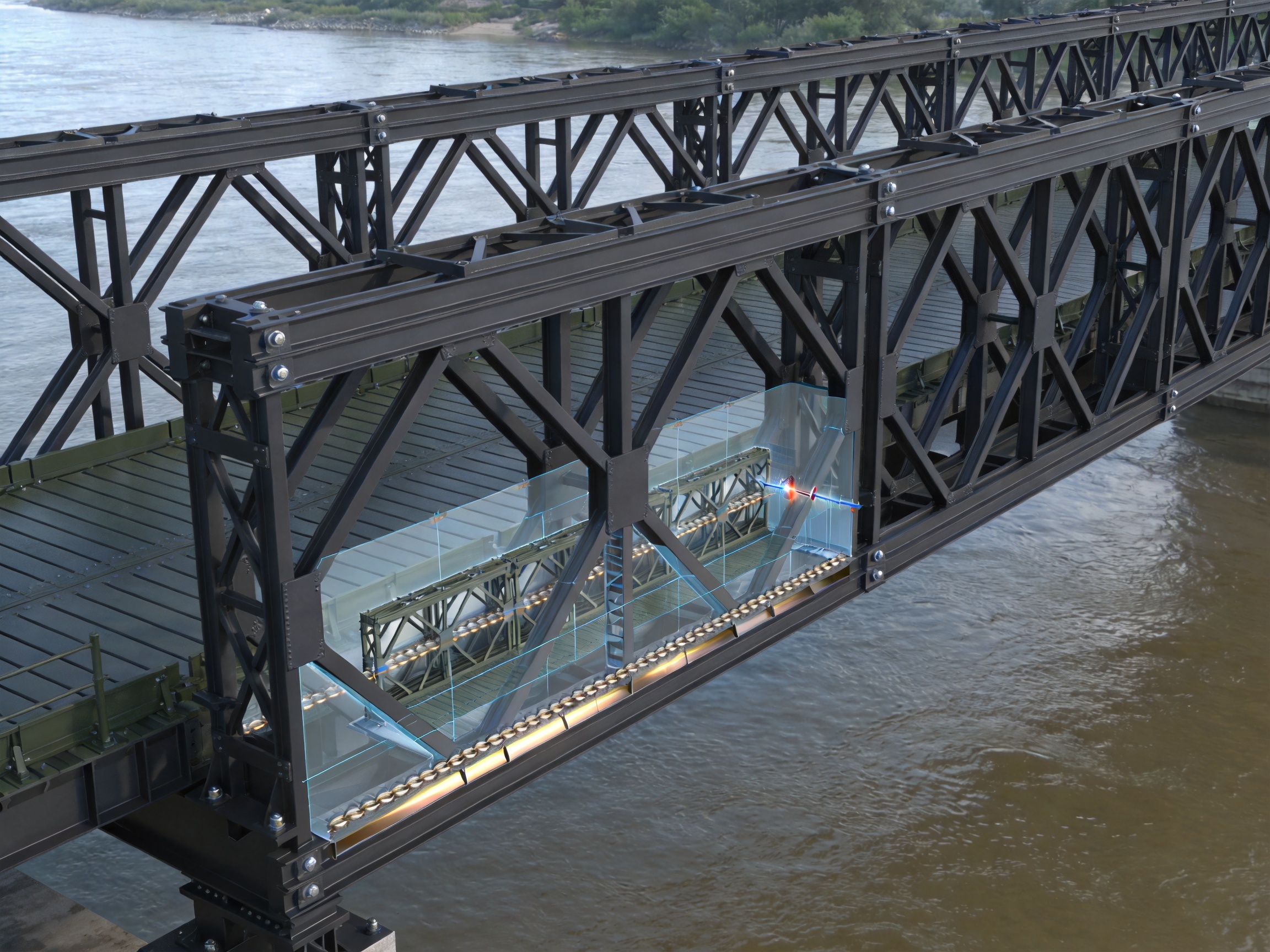

A Bailey bridge is a prefabricated truss bridge assembled from standardized steel panels, chords, bracing members, transoms, decks, and connection accessories. Its modular design allows a bridge to be transported in sections and rapidly assembled at the construction site. Depending on the arrangement of the panels and the number of trusses used together, the system can serve as a temporary bridge, emergency crossing, semi-permanent bridge, construction access bridge, or support structure.
In a conventional truss, the upper and lower chords work together with the vertical and diagonal members to transfer loads toward the supports. The upper chord is generally associated with compression under common loading conditions, while the lower chord commonly carries significant tension. Actual force distribution depends on the span arrangement, loading pattern, support conditions, construction sequence, and structural configuration.
The lower chord must resist forces generated by vehicle loads, pedestrian loads, construction equipment, impact effects, wind, dynamic movement, and the self-weight of the bridge. When a bridge is designed for a greater span or a higher service load, the lower chord can become a critical area requiring additional structural capacity and stiffness.
A lower reinforcing chord is installed to supplement the strength of the original lower chord. Instead of replacing the complete bridge truss with a much heavier or entirely different system, the reinforcement creates a practical way to improve performance while retaining the original modular components. This approach is especially useful when transportation, erection speed, interchangeability, and site flexibility are important.
The YG lower reinforcing chord for Bailey bridges is designed as a core reinforcement component for prefabricated steel bridge systems. It is intended to be assembled with compatible YG series Bailey bridge components and used to strengthen the lower portion of the truss.
The product has standardized external dimensions of 3115 by 100 by 176 millimeters. Its principal material is Q355B low-alloy structural steel. The standardized geometry supports repeatable assembly and makes the component suitable for organized bridge planning, modular fabrication, storage, transport, and field installation.
| Item | Specification | Engineering Significance |
|---|---|---|
| Product | YG lower reinforcing chord for Bailey bridge | Reinforces the lower chord area of a compatible Bailey truss system |
| Category | Pre-cambered Bailey truss component | Supports modular bridge configurations requiring controlled geometry |
| External dimensions | 3115 × 100 × 176 mm | Provides standardized dimensional compatibility and repeatable installation |
| Material | Q355B low-alloy steel | Offers a high-strength structural steel basis for heavy-duty applications |
| Primary function | Lower chord reinforcement | Improves load-bearing performance and overall truss rigidity |
| Typical use | Temporary, emergency, semi-permanent, and permanent steel bridge applications | Provides a flexible reinforcement solution for multiple project environments |
The component is not merely an additional steel bar or general-purpose structural section. Its value comes from being produced for a particular modular bridge family, with dimensions and connection requirements intended to support accurate system assembly. The closer the reinforcement is matched to the bridge truss, the more effectively loads can be transferred through the intended structural path.
Increasing the span or service load of a modular bridge often creates greater demands on the truss chords. As span length increases, bending effects and chord forces can rise significantly. Heavy trucks, construction machinery, military vehicles, and repeated traffic may also produce stress cycles that require a stronger and more rigid structural arrangement.
A lower reinforcing chord contributes to the bridge in several important ways:
The reinforcement adds structural material to the lower chord region. When correctly connected and integrated with the original truss, it can help the bridge carry larger design loads than a basic unreinforced arrangement. The actual capacity must always be verified by a qualified engineer based on span, loading, support conditions, truss configuration, connection details, and applicable design standards.
Strength alone is not the only concern in a bridge. Excessive deflection, vibration, movement, or local deformation can affect safety, riding comfort, serviceability, and the durability of the deck and connections. Reinforcement increases the stiffness of the lower truss region and can help the assembled bridge maintain its intended geometry under service loads.
Temporary bridges are often exposed to severe operating conditions. They may carry loaded dump trucks, cranes, excavators, emergency vehicles, military transport, or construction materials. A reinforced lower chord is particularly useful where the bridge must support demanding traffic while maintaining modular erection and disassembly advantages.
Strengthening a bridge with a compatible reinforcing chord can be more efficient than replacing the entire bridge with a completely new structural system. Existing panels and accessories may remain useful, reducing material changes, transportation requirements, and project disruption. This is one of the main advantages of modular reinforcement over non-standard structural modifications.
The product is categorized as a pre-cambered Bailey truss component. Pre-cambering is used in bridge engineering to help compensate for expected deflection under permanent and service loads. A correctly planned pre-cambered arrangement can improve the initial geometry of the bridge and help maintain a more suitable profile after loading.
Pre-camber is not a substitute for structural calculation. The required amount depends on span, loading, support conditions, construction sequence, and the design methodology adopted for the project. However, a standardized component intended for a pre-cambered system offers greater predictability than a field-fabricated member whose geometry and stiffness may vary.
The YG lower reinforcing chord is manufactured from Q355B low-alloy structural steel. This material is widely associated with high-strength structural applications where a favorable balance of strength, weldability, toughness, and fabrication performance is required.
The designation identifies a structural steel grade with a nominal yield strength level appropriate for demanding load-bearing applications. The letter designation and material properties should always be verified through the relevant material certificate and project specifications. Actual design values must be selected according to the governing standard and the specific plate or section thickness.
Compared with ordinary lower-strength structural steel, Q355B provides a higher strength basis for a reinforcement component. This allows engineers to develop a robust member without necessarily increasing the size of every bridge element. The result can be an efficient structural solution that preserves the advantages of modular construction.
A bridge component must be strong after installation, but it must also be practical to cut, form, weld, inspect, coat, transport, and assemble. Q355B is suitable for engineered steel fabrication when proper welding procedures, heat control, joint preparation, and inspection practices are applied.
Temporary and semi-permanent bridges may be used in regions with heavy rainfall, temperature variation, construction dust, mud, deicing chemicals, or coastal exposure. The steel grade provides a solid structural basis, while the final durability of the component also depends on surface preparation, protective coating, drainage, inspection, and maintenance.
Using a defined steel grade helps a manufacturer control incoming raw materials and maintain repeatable production. Standardized material selection is especially important for modular bridge parts because many identical or interchangeable components may be used in the same structure. Consistency reduces uncertainty during design, inventory planning, replacement, and field repair.
The performance of a reinforcing chord depends not only on its nominal dimensions and material grade but also on how it is manufactured. A bridge component must maintain dimensional accuracy, connection reliability, weld quality, surface condition, and traceability throughout production.
The manufacturing process for a high-quality lower reinforcing chord can be organized into several controlled stages. These stages form an integrated production system rather than a single fabrication operation.
Production begins with an engineering review of the component drawings, dimensions, connection details, material requirements, tolerances, and intended assembly relationship. The manufacturer must understand how the reinforcing chord interfaces with the YG series Bailey truss and which dimensions are critical to installation.
Production planning includes material scheduling, cutting plans, tooling preparation, welding sequence planning, inspection points, coating requirements, and packing arrangements. A well-planned process reduces unnecessary handling and helps ensure that every stage supports the final assembly function.
Q355B steel is selected and checked before fabrication. Material control normally includes verification of grade, thickness, dimensions, surface condition, and associated quality documentation. Proper identification allows the manufacturer to preserve traceability from the incoming steel to the finished component.
Raw material should be stored in a way that reduces contact with standing water, excessive contamination, and mechanical damage. Steel plates and sections must be handled carefully because dents, deep scratches, edge damage, and distortion can affect subsequent forming, welding, coating, or assembly.
Steel parts are cut according to approved drawings and production data. Controlled cutting helps maintain the length, width, end geometry, hole locations, and connection relationships required for assembly. Edges are then prepared by removing excessive burrs, slag, sharp projections, and other irregularities.
Accurate cutting is particularly important for modular components. A small dimensional error can become more significant when several panels and reinforcing members are assembled across a bridge. Consistent parts are therefore essential for interchangeability and efficient field erection.
Where the reinforcing chord requires shaped or assembled sections, forming and positioning are performed with suitable fixtures or jigs. Fixtures help hold components in their intended relationship during tack welding and final welding. They also reduce variation between production batches.
Controlled positioning supports correct alignment of connection plates, stiffeners, end details, and other structural elements. It minimizes the risk of accumulated dimensional errors that could make installation difficult or place unintended stress on the bridge system.

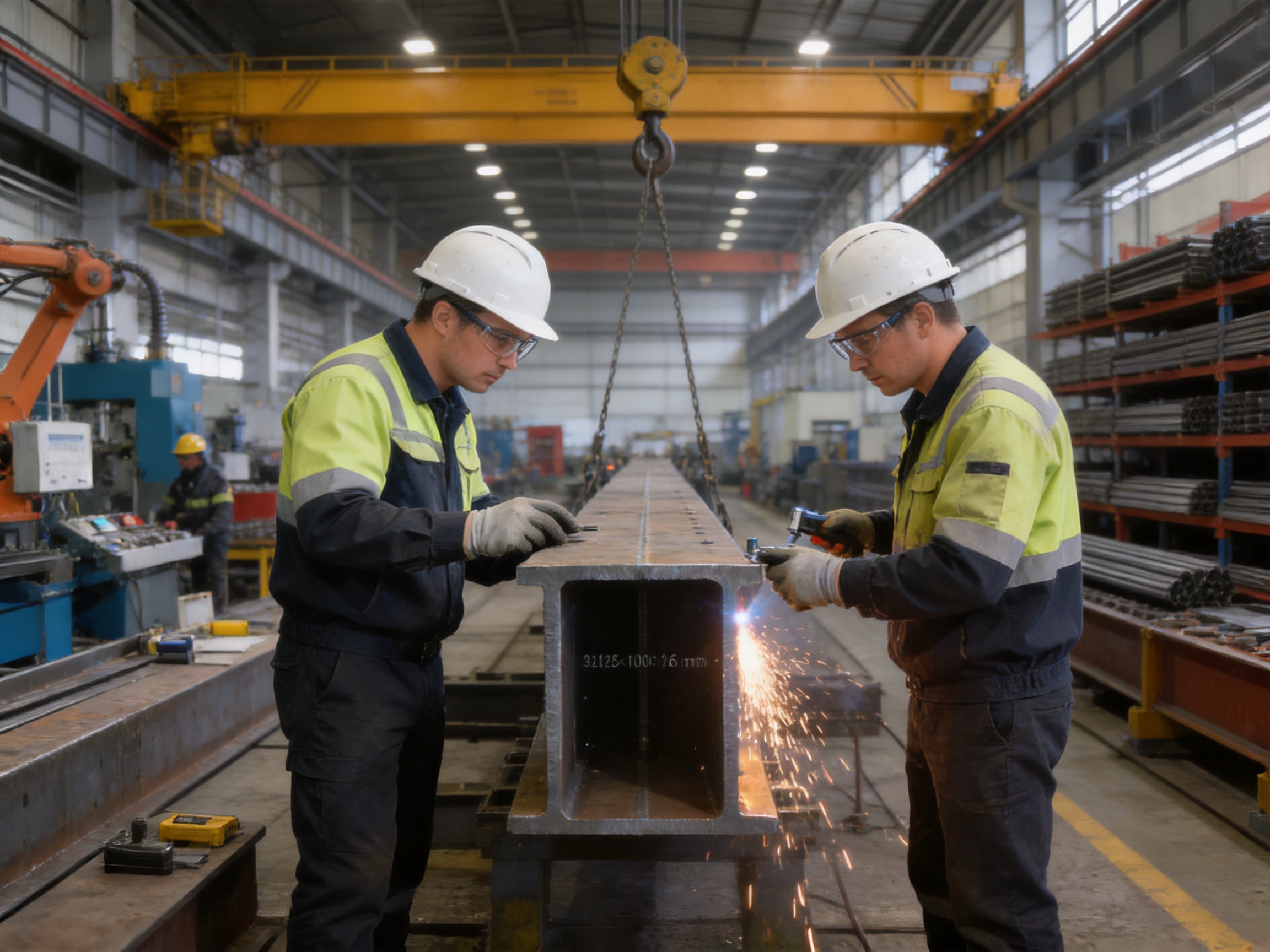

Welding is a critical manufacturing operation because welded joints transfer structural forces between the component parts. Proper joint preparation, welding parameters, electrode or wire selection, fit-up, preheating where required, interpass control, and cooling practices all influence final joint quality.
A planned welding sequence can help reduce distortion and residual stress. Excessive heat concentration in one area may alter the geometry of a long or relatively slender member. For that reason, experienced fabrication teams use controlled sequences and inspection checkpoints to maintain the dimensional integrity of the component.
Welding quality should be assessed according to the project specification and applicable standards. Inspection may include visual examination and, where required, non-destructive testing methods appropriate to the joint type and structural importance. The exact inspection program should be determined by the responsible engineer or quality plan.
After fabrication, the reinforcing chord is checked against the required external dimensions and critical connection locations. Measurements may include overall length, width, depth, straightness, squareness, hole spacing, connection plate position, and local distortion.
Dimensional inspection is essential because the component must be assembled with other standardized bridge parts. A structurally strong member that does not fit correctly can delay erection, require unsafe field modification, or create an improper load path. Accurate manufacturing avoids these problems before the component leaves the factory.
Steel bridge components require protection against corrosion. Surface preparation removes mill scale, loose rust, oil, moisture, and other contaminants before coating. The selected coating system depends on the operating environment, expected service period, maintenance plan, and project requirements.
A suitable coating can extend service life and reduce maintenance. However, coating should not conceal weld defects, excessive surface damage, or dimensional problems. Inspection is therefore carried out at appropriate stages before and after painting or other protective treatment.
Before dispatch, the finished component is checked for appearance, dimensions, connection condition, coating quality, identification marks, and packing security. Clear identification supports efficient inventory management and helps site teams select the correct component during assembly.
Packaging must protect connection surfaces, coating, edges, and structural details during loading, transportation, and unloading. Proper packing is particularly important for bridge projects delivered to remote construction sites where replacement parts may not be immediately available.
Bridge contractors sometimes consider field-fabricated plates, miscellaneous channels, welded steel bars, or other improvised members when they need additional strength. While such approaches may appear economical at first, they can introduce uncertainty into the structural system.
The YG lower reinforcing chord is intended for assembly with compatible YG series Bailey bridge components. A non-standard steel member may have unsuitable dimensions, connection spacing, stiffness, or end geometry. Even if it appears to fit, it may not transfer loads through the intended structural path.
Standardized components can be ordered, stored, replaced, and assembled more efficiently. Contractors working on multiple bridge projects may use the same reinforcement members across different sites, provided the configurations are verified by engineering personnel.
Factory production provides greater control over material grade, welding, geometry, and surface treatment than uncontrolled field fabrication. This does not eliminate the need for inspection, but it creates a more consistent baseline for quality management.
Field welding can be affected by weather, access, power supply, worker position, surface contamination, and limited inspection facilities. A prefabricated reinforcement member reduces the amount of structural welding required at the bridge site. Mechanical assembly can be faster and more consistent when connection details are properly designed.
Emergency and temporary bridge projects often operate under severe time constraints. A ready-made, standardized reinforcement component can be delivered with the bridge system and installed as part of the planned erection sequence. This helps reduce delays caused by material sourcing, field measurement, and on-site fabrication.
Standard dimensions simplify loading plans and storage arrangements. Components can be grouped, counted, inspected, and moved using established handling procedures. This is an important advantage for contractors managing bridge materials across multiple projects.
The YG lower reinforcing chord can support a broad range of engineering applications where a Bailey bridge or related modular steel structure requires additional lower chord performance.
Floods, earthquakes, landslides, storms, and other disasters can damage roads and permanent bridges. Emergency crossings must often be installed quickly to restore access for rescue teams, medical supplies, food, equipment, and local traffic.
A reinforcement component designed for rapid modular assembly can help emergency bridge planners create stronger bridge arrangements without waiting for a fully customized structural system. The final configuration must still be checked for the intended span, traffic load, foundation condition, and environmental forces.
Large infrastructure projects frequently need temporary crossings for trucks and equipment. These bridges may be installed across rivers, drainage channels, excavations, road corridors, or construction zones. Heavy machinery imposes concentrated and dynamic loads, making lower chord reinforcement useful when the standard configuration is not sufficient for the planned duty.
Municipal projects may require temporary access during road widening, bridge replacement, utility construction, or flood-control works. A reinforced modular bridge can provide a practical crossing while permanent works proceed. Its dismantling and potential reuse can also reduce waste and improve asset utilization.
Water conservancy construction often takes place in locations where access is difficult and working conditions are variable. Bailey bridges can provide access for construction teams, cranes, concrete trucks, and material delivery. Reinforced lower chord components can help adapt the bridge system to heavier construction traffic and longer temporary spans.
Railway construction and maintenance projects may require temporary road crossings, construction support structures, guide beams, or access routes. Modular steel bridge components are valuable because they can be erected and removed with less disruption than many conventional structures.
Defense-readiness applications place a premium on transportability, rapid deployment, load capacity, and interchangeability. Bailey-type systems can be assembled into temporary crossings and support structures for vehicles and equipment. A standardized lower reinforcing chord can contribute to the development of robust bridge configurations for demanding operational environments.
Some projects require a bridge to remain in service for months or years before a permanent replacement is constructed. In such cases, the structure must be treated with the seriousness of a long-term asset. Reinforcement, corrosion protection, inspection, drainage, deck maintenance, and load control all become important. The lower reinforcing chord can form part of a semi-permanent solution when supported by appropriate engineering design.
A reinforcing chord should never be selected independently from the complete bridge system. The bridge’s performance depends on the interaction of panels, chords, bracing, transoms, stringers, deck units, bearings, supports, foundations, and connections.
Before installation, engineers should review at least the following factors:
The reinforcement can improve the capacity of the lower chord, but it cannot correct every weakness in a bridge design. Inadequate foundations, poor bearings, damaged panels, loose connections, insufficient lateral bracing, or unsuitable deck components may remain critical even after the lower chord is strengthened.
For this reason, the product should be used as part of a complete engineering solution. A manufacturer with experience in bridge design, fabrication, erection, and leasing can contribute more effectively than a supplier that only provides isolated steel parts. System knowledge helps ensure that the reinforcement is selected and installed in a technically appropriate manner.

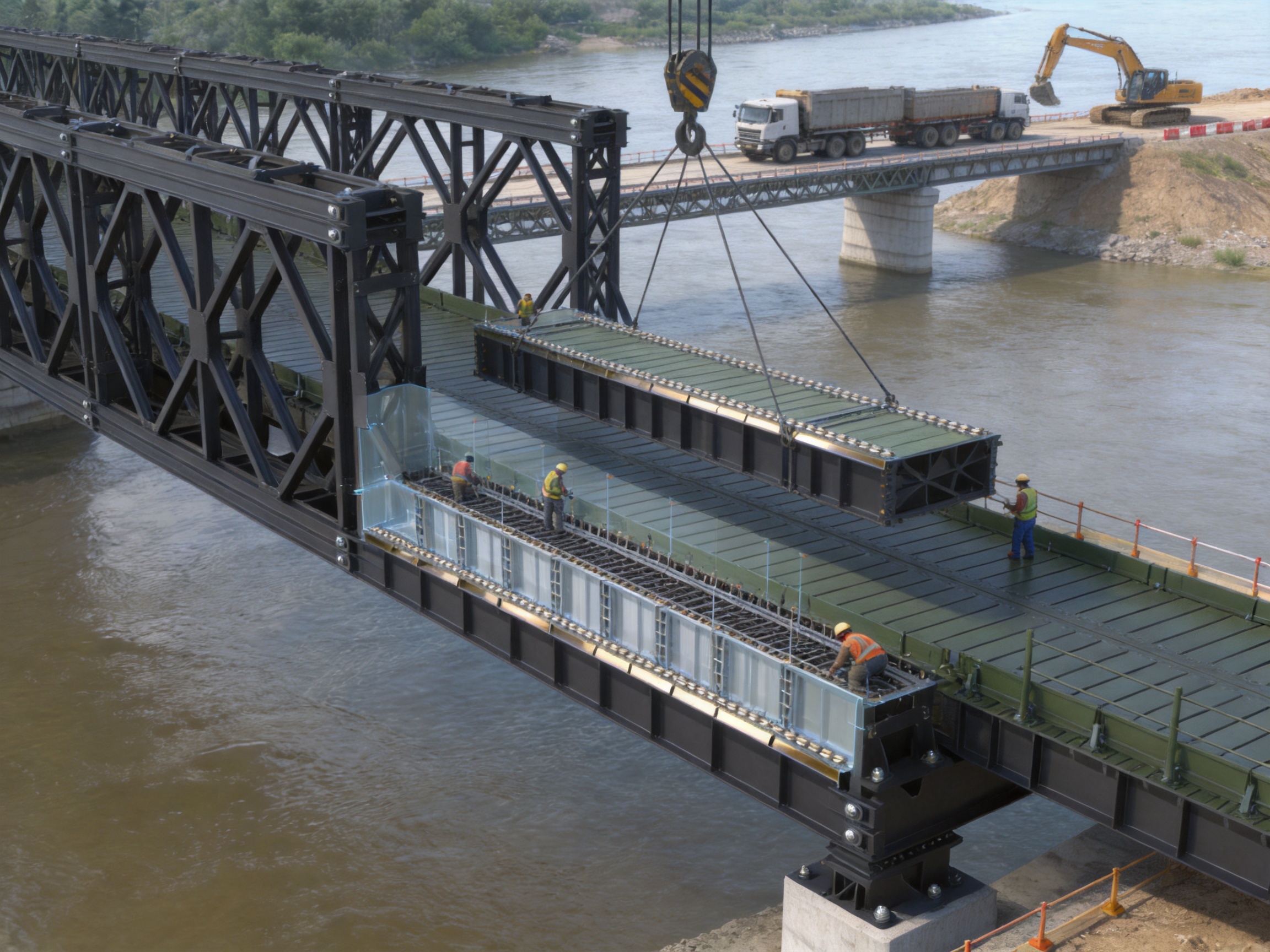

Installation should follow approved drawings, method statements, and the instructions of the responsible engineering team. The exact sequence depends on the bridge arrangement and site conditions, but several general principles apply.
The bridge panels, reinforcement members, bolts, pins, connection plates, and accessories should be checked against the planned configuration before mobilization. Confirming compatibility in advance reduces the risk of discovering dimensional or quantity problems after cranes and labor have arrived on site.
Each reinforcing chord should be examined for transport damage, bending, coating loss, excessive corrosion, cracked welds, distorted connection details, and missing identification marks. Damaged structural members should be isolated and assessed before use.
The assembly area should be level, accessible, and capable of supporting the temporary loads generated during construction. Proper blocking and support prevent uncontrolled bending or twisting while the bridge sections are being assembled and launched.
Bolts, pins, nuts, washers, and other connection hardware must match the design requirements. Substituting ordinary hardware for structural connection components can compromise the load path. Fasteners should be installed, tightened, and inspected according to the approved procedure.
Alignment is essential for a modular truss. The lower reinforcing chord should remain correctly positioned relative to the lower chord and adjacent bridge panels. Misalignment can introduce eccentric loading, interfere with bolt installation, increase local stress, or make the bridge difficult to launch.
Where the system uses a pre-cambered arrangement, survey checks should be performed during and after erection. Measurements can confirm that the bridge profile, support elevations, panel alignment, and intended camber are within the project tolerances.
After the bridge is opened to service, inspections should look for unusual deflection, vibration, noise, coating damage, loose fasteners, local deformation, bearing movement, and changes in alignment. Early monitoring helps identify issues before they develop into more serious structural or operational problems.
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. is located in Shangdang Town Industrial Park, Dantu District, Zhenjiang City, Jiangsu Province, China. Established in 2017, the company has developed from a business focused on construction, industrial, and metal-processing materials into a comprehensive enterprise serving the steel bridge and formwork sector.
Its business scope includes the design, manufacturing, erection, and leasing of Bailey bridges, bridge launching gantry systems, hanging baskets, pier formwork, bridge steel formwork, and related engineered steel structures. This combination of manufacturing and project services gives the company practical knowledge of how steel components behave not only in the factory but also during transportation, installation, launching, loading, and dismantling.
The company’s product range includes Bailey steel bridges, Type 321 Bailey truss sections, HD200 and Type 200 Bailey truss sections, triangular and diamond hanging baskets, bridge steel formwork, and associated steel structures. A broad product range allows customers to coordinate multiple components through one experienced engineering source.
For a lower reinforcing chord, this system perspective is important. Customers may need more than an individual member. They may require a complete truss arrangement, launching plan, deck solution, support structure, formwork package, or technical consultation. A manufacturer familiar with these related products can help reduce coordination gaps between separate suppliers.
Engineering support can include product selection, structural configuration, system planning, and project-specific adaptation. The appropriate bridge arrangement depends on span, traffic, site access, loading, water conditions, and required service duration.
Customized planning is particularly valuable when a project combines standard components with unusual site constraints. The goal is not to modify standardized parts without control, but to use modular components within a clearly defined and verified system.
Manufacturing experience in steel bridges and formwork supports more disciplined fabrication practices. Bridge products must be produced with attention to dimensional accuracy, weld integrity, connection repeatability, surface protection, and transport handling. These requirements are central to the reliability of the YG lower reinforcing chord.
A company that provides erection services understands the practical challenges faced by contractors. These may include restricted access, limited lifting equipment, variable foundations, weather interruptions, tight construction schedules, and the need to maintain traffic or waterway clearance.
Field knowledge can improve the usability of the manufactured product. It encourages the development of components that are not only strong on paper but also manageable during real installation and removal operations.
Bailey bridge systems are often used temporarily. Leasing can help contractors, municipalities, and project owners obtain bridge equipment without purchasing a complete inventory for a single project. A reusable reinforcement component may support better lifecycle value when it is maintained, inspected, and redeployed correctly.
The company provides steel bridge solutions for contractors, government-related projects, and engineering companies in different markets. Its stated services include customized fabrication, design and system planning, technical support, and quality management. These capabilities are relevant for international buyers that need coordinated communication, standardized documentation, and a supplier able to support complex procurement requirements.
Different reinforcement strategies may be suitable for different bridge projects. The YG lower reinforcing chord has particular advantages when the project requires compatibility with a modular Bailey system.
| Reinforcement Approach | Typical Strength | Potential Limitation | Value of a Standardized YG Lower Reinforcing Chord |
|---|---|---|---|
| Field-welded steel plates | Can be adapted to unusual local details | Requires site welding, inspection, and distortion control | Provides a prefabricated alternative with controlled geometry |
| General-purpose steel channels | May be readily available in local markets | May not match connection points or system stiffness | Designed for compatibility with the intended Bailey configuration |
| Unreinforced Bailey truss | Fast and economical for moderate loads | May not provide sufficient capacity or rigidity for heavier duties | Adds reinforcement while preserving modular bridge principles |
| Fully custom bridge structure | Can be optimized for a single project | Usually requires more design, fabrication, transport, and time | Offers standardized modularity and faster deployment |
| Heavy permanent bridge system | Suitable for long-term high-volume traffic | Often involves greater cost, foundation work, and construction time | Provides a practical option where temporary or semi-permanent service is appropriate |
The comparison does not mean that one product is suitable for every application. A permanent highway bridge with a long design life and high traffic volume may require a dedicated permanent structure. However, where rapid construction, reuse, transportability, and modular assembly are priorities, a compatible reinforcing chord can offer a strong balance between performance and practicality.
A reinforcing chord contributes to bridge reliability only when it is maintained as part of the complete structure. Maintenance planning should begin before the bridge is erected and should reflect the expected environment and service duration.
Regular visual inspections should examine exposed steel surfaces, weld zones, connection areas, fasteners, bearing interfaces, and locations where water or dirt may accumulate. Particular attention should be paid to lower chord areas because they may be exposed to road splash, mud, standing water, and impact from equipment.
Scratches, impact marks, peeling paint, and exposed steel should be repaired according to the approved coating system. Surface preparation is important; simply painting over rust or contamination may trap corrosion beneath the new coating.
Bridge movement, vibration, repeated loading, and construction activity can affect connection tightness. Bolts, pins, retainers, and related components should be checked at intervals determined by the structural management plan. Any missing, damaged, or incorrectly installed hardware should be addressed promptly.
Posted load limits and traffic controls should be respected. Overloading may create stresses beyond the design assumptions and can damage not only the reinforcing chord but also panels, deck members, bearings, and foundations.
Inspection records should include the bridge configuration, installation date, component identification, observed conditions, repairs, load events, and maintenance actions. Good records assist future inspections and support safe reuse when the bridge is dismantled and deployed at another site.
When purchasing a lower reinforcing chord, buyers should evaluate more than the unit price. The total value of the component depends on compatibility, engineering support, quality consistency, delivery reliability, documentation, and after-sales service.
Provide the supplier with the exact Bailey bridge type, panel dimensions, truss arrangement, span, lane configuration, required loading, and intended service period. A product that fits one modular system may not be suitable for another.
Technical documentation should identify the product dimensions, material grade, connection details, permissible use, inspection requirements, surface treatment, and handling instructions. Project-specific drawings may be necessary when the component is incorporated into a larger bridge arrangement.
Material certificates, inspection records, welding documentation, dimensional reports, and coating information may be requested according to project requirements. The required documentation level should be agreed before production begins.
For large projects, delivery may require multiple batches of identical components. Buyers should consider whether the manufacturer can maintain consistent dimensions, materials, and quality across the order. Production capacity and packaging capability are especially important when the project schedule is compressed.
A component supplier that also provides design planning, erection, and related bridge products may offer more useful support during implementation. This can be valuable when the project involves challenging terrain, restricted access, temporary traffic management, or a specialized launching sequence.
The YG lower reinforcing chord is a structural bridge component and should be used only within an engineered and approved configuration. Product information alone cannot determine the safe capacity of a complete bridge. A qualified structural engineer must verify the proposed arrangement and confirm that it satisfies applicable regulations and project requirements.
Users should not alter the component by drilling new holes, cutting connection plates, welding unapproved attachments, heating the steel, or changing the installation orientation without engineering approval. Such modifications can reduce cross-sectional capacity, introduce stress concentrations, affect material properties, or prevent the intended connection from working correctly.
Safe erection also requires trained personnel, appropriate lifting equipment, controlled access, temporary bracing, and a documented construction sequence. Bridge launching operations can involve significant horizontal forces and temporary conditions that differ from the final service arrangement. Every stage should be reviewed for stability.
Once the bridge is in service, traffic management, load restrictions, inspection procedures, and emergency response plans should be established. The reinforcement is an important component, but bridge safety depends on the entire system and its management throughout the project lifecycle.
Its primary purpose is to strengthen the lower chord area of a compatible Bailey bridge truss. It helps increase load-bearing performance and overall structural rigidity, particularly in bridge arrangements exposed to large spans, heavy loads, or demanding temporary service conditions.
The stated external dimensions are 3115 by 100 by 176 millimeters. These dimensions should be checked against the project drawings and the specific YG series Bailey bridge configuration before ordering or installation.
The component is manufactured from Q355B low-alloy structural steel. Material documentation and design properties should be confirmed according to the applicable project standard.
No. It is intended for assembly with compatible YG series Bailey bridge components. Compatibility must be confirmed through drawings, connection details, dimensions, and engineering review. It should not be assumed that all Bailey-type systems are interchangeable.
It can be used in temporary, semi-permanent, and certain permanent steel bridge applications when the complete structure is properly designed and maintained. Service duration, traffic volume, environmental exposure, corrosion protection, foundation design, and inspection requirements must all be considered.
No. The reinforcing chord is one component within a complete bridge system. A qualified engineer must calculate the bridge capacity, deflection, stability, connection performance, foundation requirements, and other relevant design conditions.
A pre-cambered component can support a bridge geometry intended to compensate for expected deflection under permanent and service loads. The correct pre-camber depends on the complete bridge design and must be verified during engineering and erection.
A factory-made, standardized component generally offers better dimensional consistency, connection compatibility, repeatability, and reduced site welding. Field-fabricated reinforcement may be useful in special circumstances, but it requires careful design, fabrication control, and inspection.
Inspect the member for bending, distortion, damaged welds, coating loss, corrosion, damaged connection details, incorrect dimensions, and missing identification. Any questionable component should be assessed before being incorporated into the bridge.
Potential applications include emergency bridges, construction access bridges, municipal works, water conservancy projects, railway engineering, national defense readiness, heavy-duty temporary crossings, and semi-permanent modular bridge structures.
Modular bridge components are often designed for repeated assembly and disassembly. Reuse is possible only after inspection confirms that the member, welds, connection areas, coating, and overall geometry remain suitable for the next project.
The company provides customized fabrication, design and system planning, technical support, quality management, erection, and leasing services for Bailey bridges, launching gantries, hanging baskets, pier formwork, bridge steel formwork, and related steel structures.
The YG lower reinforcing chord is a practical and technically focused solution for improving the performance of compatible Bailey bridge systems. With standardized dimensions of 3115 by 100 by 176 millimeters and Q355B low-alloy structural steel construction, it is designed to reinforce the lower chord, increase truss rigidity, and support demanding bridge applications.
Its principal advantage over improvised reinforcement is system compatibility. Instead of relying on general-purpose steel members or extensive field welding, contractors can use a prefabricated component developed for modular assembly. This supports more predictable geometry, faster installation, easier inventory control, improved repeatability, and more efficient project execution.
The product is particularly relevant to temporary, emergency, construction, municipal, water conservancy, railway, defense, and semi-permanent bridge projects. Its value is increased when it is supplied by an organization with capabilities extending beyond individual component sales. Design planning, fabrication, erection, leasing, quality management, and technical support all contribute to a more complete bridge solution.
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. combines steel bridge manufacturing with engineering and field-service experience. Its product portfolio covers Bailey trusses, Type 321 and HD200 or Type 200 bridge systems, launching gantries, hanging baskets, bridge formwork, and associated steel structures. This broader capability enables customers to coordinate reinforcement components with the rest of their bridge requirements.
Ultimately, the lower reinforcing chord should be selected and installed as part of a verified structural design. When properly matched to the bridge system, accurately manufactured, correctly erected, and regularly inspected, it can provide a dependable way to improve load-bearing performance while preserving the speed, flexibility, and reusability that make modular steel bridges valuable in modern infrastructure projects.
1. Bailey, D. C. The Bailey Bridge. Engineering literature on modular prefabricated truss bridge principles.
2. American Institute of Steel Construction. Specification for Structural Steel Buildings. General principles for structural steel design and fabrication.
3. International Organization for Standardization. Quality Management Systems — Requirements. General guidance for controlled manufacturing and quality management.
4. International Organization for Standardization. Steel and Iron Products — General Technical Delivery Requirements. Guidance related to material documentation and product delivery.
5. European Committee for Standardization. Execution of Steel Structures and Aluminium Structures. Principles concerning fabrication, inspection, and execution of steel structures.
6. Chinese national standards for low-alloy structural steels and welded steel construction. Material and fabrication requirements should be selected according to the applicable project specification.
7. Project-specific design drawings, bridge configuration calculations, erection method statements, inspection plans, and maintenance records for the applicable Bailey bridge system.
