The HD200 Vertical Support Frame is a critical load-bearing component for modern Bailey bridge systems, heavy-duty prefabricated trusses, bridge erection equipment, and large steel formwork support structures. Although it is a relatively compact part of a complete bridge assembly, its function is fundamental: it helps transfer vertical loads, maintain truss geometry, resist deformation, and contribute to the overall stability of the bridge system.
In a modular bridge, structural performance depends not only on the strength of the main truss panels but also on how effectively individual components work together. The vertical support frame connects the upper and lower structural zones, cooperates with horizontal support frames and strengthening chords, and helps create a stable three-dimensional force-bearing system. This coordinated arrangement enables the bridge to carry traffic loads, construction loads, equipment loads, and other temporary or semi-permanent service forces with greater reliability.
The HD200 Vertical Support Frame is available in two principal specifications: the 730 type and the 480 type. These models correspond to the relevant HD200 truss spacing arrangements and provide flexibility for different bridge configurations. Manufactured from Q355B structural steel, the frame combines suitable strength, dimensional consistency, and compatibility with standardized HD200 components.
For contractors, bridge fabricators, infrastructure authorities, and emergency engineering teams, the value of this component lies in more than its material specification. Its modular geometry, standardized dimensions, field-installation advantages, and compatibility with related HD200 parts make it useful in large-span and high-load applications. It can support bridge construction, temporary access routes, heavy-duty platform systems, formwork support, and emergency restoration projects.
Type HD200 - Vertical Support Frame For Bailey Bridge
A Bailey bridge is assembled from standardized steel elements rather than being built as a single monolithic structure. Main truss sections, transoms, decks, bracing members, support frames, strengthening chords, and connection hardware all contribute to the completed bridge. Each component has a defined role in the structural load path.
The vertical support frame is positioned within the truss arrangement to maintain the designed relationship between the upper and lower structural members. It transfers vertical actions through the truss depth and helps preserve the geometry of the assembled system. When bridge loads cause compression, tension, bending, or lateral movement within the truss, the vertical frame works with adjacent members to distribute these effects.
Without adequate vertical support, a deep truss can experience local instability, excessive distortion, or uneven load distribution. The risk becomes more important when the bridge has a large height-to-width ratio, carries heavy vehicles, supports construction equipment, or is assembled over a long span. The vertical support frame helps address these conditions by connecting the structural zones and providing a more controlled load path.
In practical engineering terms, the frame contributes to several important functions:
1. It helps transmit vertical loads between the upper and lower portions of the HD200 truss.
2. It helps control vertical deformation under traffic, construction, and assembly loads.
3. It supports the formation of a three-dimensional structural system when combined with horizontal support frames.
4. It contributes to resistance against structural overturning and unwanted movement.
5. It helps maintain the intended spacing and alignment of HD200 truss members.
6. It provides a standardized connection point for compatible strengthening and support components.
7. It improves the practicality of assembling heavy-duty modular bridge structures in the field.
The frame should not be viewed as an independent replacement for engineering design, foundation preparation, or complete bracing. Instead, it is a core element in a coordinated structural system. Proper performance depends on correct selection, installation, connection, inspection, and verification of the complete bridge arrangement.

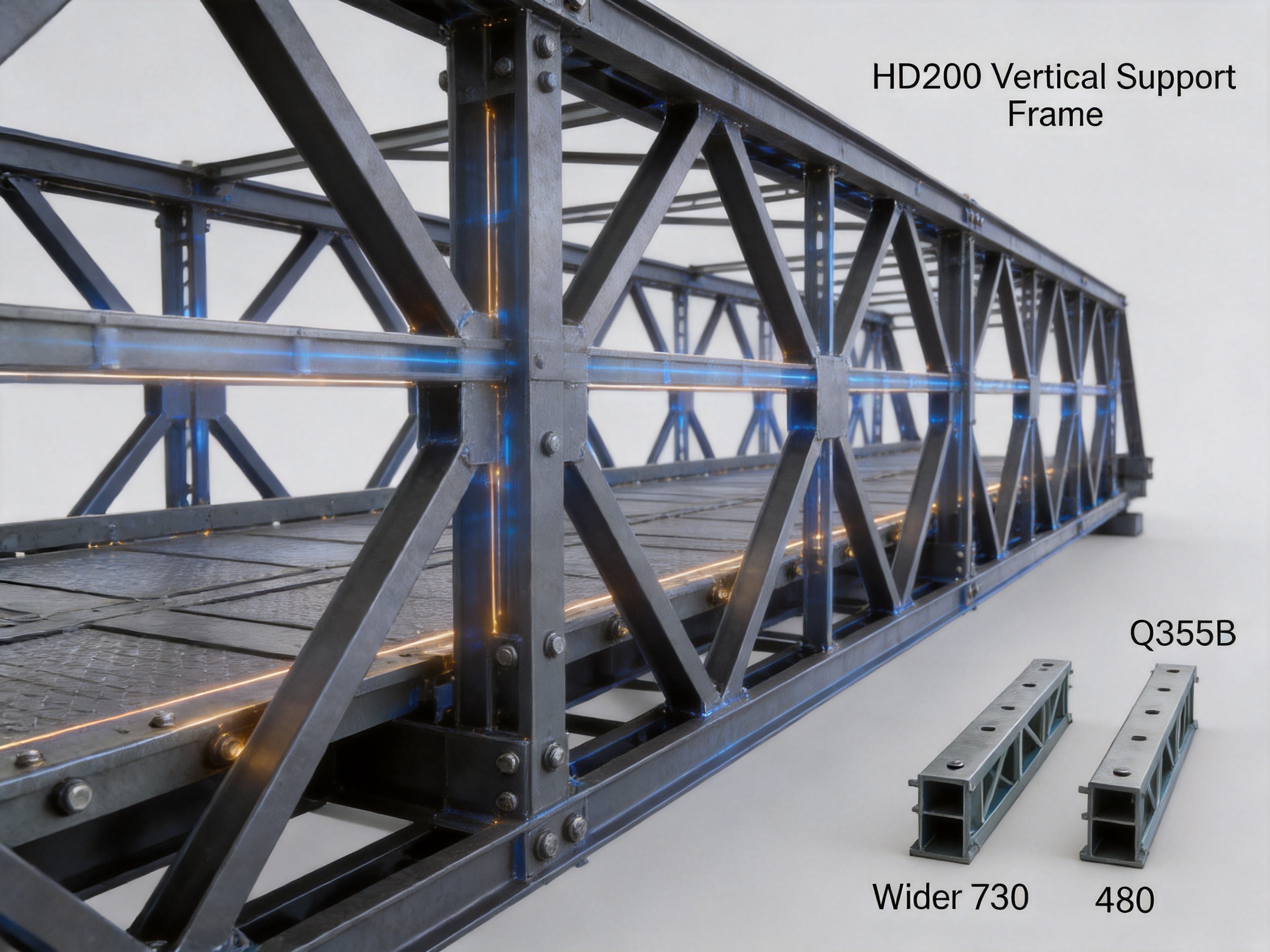

The HD200 Vertical Support Frame is offered in two configurations. The 730 type is designed for the wider corresponding HD200 truss spacing, while the 480 type is designed for the narrower arrangement. Selecting the correct model is important because the frame must match the geometry of the truss system and the positions of the associated connection points.
| Item | 730 Type | 480 Type |
|---|---|---|
| Product | HD200 Vertical Support Frame | HD200 Vertical Support Frame |
| External dimensions | 1774 × 820 × 50 mm | 1774 × 570 × 50 mm |
| Center distance arrangement | 1694 × (250 + 230 + 250) mm | 1694 × (250 + 230 + 250) mm |
| Primary material | Q355B structural steel | Q355B structural steel |
| System compatibility | HD200 truss system, wider spacing arrangement | HD200 truss system, narrower spacing arrangement |
| Typical application | Heavy-duty bridge and support structures | Heavy-duty bridge and support structures |
The external dimensions provide a direct reference for design coordination, transport planning, fabrication review, and installation preparation. The 1774 mm overall length is consistent across the two models, while the width changes to reflect the relevant spacing configuration. This arrangement gives users a practical way to select the appropriate frame without redesigning the entire support system.
The center distance arrangement of 1694 × (250 + 230 + 250) mm is especially important during layout and connection checks. It provides a dimensional reference for matching the frame with related HD200 members. Before installation, engineering personnel should confirm that the bridge drawings, truss spacing, connection locations, and support-frame model are mutually compatible.
Q355B is a commonly used structural steel grade for demanding fabricated steel components. Its use provides a suitable basis for strength-oriented bridge and support applications, subject to the applicable design standard, material certification, fabrication quality, and project-specific calculations. Material grade alone does not define the complete performance of a frame; plate quality, welding, dimensional accuracy, corrosion protection, connection condition, and inspection are also important.
The most important advantage of the frame is its contribution to a continuous vertical load path. Bridge traffic and construction loads are transferred through the deck and transoms into the truss system. The vertical support frame helps distribute these forces between the upper and lower structural regions, reducing the likelihood that individual members will be required to carry an uneven share of the load.
A more balanced load path is beneficial for modular bridges because the system is assembled from multiple repeated components. If one area becomes overloaded or distorted, the effect can spread to adjacent connections and panels. By helping maintain the intended structural relationship, the vertical support frame contributes to more uniform behavior across the assembled span.
All bridge structures experience some deflection under load. The objective is not to eliminate movement entirely but to keep deformation within acceptable limits and ensure that the structure behaves predictably. Vertical support frames provide intermediate restraint and help preserve the designed truss profile.
This function is particularly relevant for long spans, high live loads, temporary construction bridges, and systems that support heavy formwork. Excessive vertical movement can affect deck serviceability, connection behavior, vehicle comfort, construction accuracy, and the alignment of supported structures. A properly integrated vertical frame helps reduce uncontrolled geometric change.
A single truss plane is vulnerable to lateral movement if it is not adequately connected to the neighboring truss plane. Horizontal support frames and vertical support frames work together to create a three-dimensional arrangement. Strengthening chords can further improve the force-bearing closed loop by connecting and reinforcing critical structural zones.
This three-dimensional system helps resist lateral displacement, local distortion, and overturning tendencies. It is especially valuable when the bridge is exposed to wind, eccentric traffic, construction equipment, uneven loading, or temporary erection forces. The frame therefore contributes not only to vertical capacity but also to the spatial stability of the complete structure.
Modular bridge systems are valued for standardization and interchangeability. The HD200 Vertical Support Frame follows this principle by being produced in defined dimensions for known HD200 spacing configurations. Standardized components simplify design coordination, procurement, stock management, field replacement, and maintenance planning.
Compared with a completely custom-built support arrangement, a standardized frame can reduce the amount of site modification required. It can also make it easier for contractors to prepare installation procedures, lifting plans, and inspection checklists in advance. When the same component is used across multiple projects, project teams can develop repeatable methods for assembly and quality control.
The HD200 system is intended for more demanding applications than many light temporary access structures. The vertical support frame is suitable for projects involving approximate spans from 9.144 m to 60.96 m and high-load conditions such as HS25 class and above, subject to project-specific engineering verification.
These applications may include temporary highway bridges, construction access bridges, emergency crossings, heavy equipment routes, bridge erection systems, large formwork support arrangements, and other structural platforms. The actual capacity of a completed bridge depends on span, truss arrangement, panel count, bracing, deck system, support conditions, load combinations, and design standards. Nevertheless, the robust frame geometry and Q355B material make the component appropriate for heavy-duty modular systems.
Product selection should be based on engineering suitability rather than on isolated dimensions or material claims. The HD200 Vertical Support Frame offers several practical advantages when compared with improvised supports, undersized components, or non-compatible frames.
Improvised supports can create uncertainty in geometry, material quality, weld consistency, and connection performance. Even when a site-fabricated member appears visually strong, it may not match the load path or spacing of the HD200 system. Dimensional errors can produce eccentric forces, incomplete contact, difficult bolt installation, and local stress concentrations.
A purpose-designed HD200 frame is produced for a defined structural arrangement. Its dimensions and connection locations are established for compatibility with the associated truss system. This helps reduce installation uncertainty and limits the need for unplanned cutting, drilling, or welding at the construction site.
Light-duty scaffolding parts may be useful for access, enclosure, or temporary working platforms, but they are not automatically suitable for carrying bridge-level vertical loads or resisting truss instability. Using components outside their intended application can create risks related to buckling, connection slip, local yielding, and inadequate lateral restraint.
The HD200 Vertical Support Frame is developed for integration with a heavy-duty steel truss system. Its structural role is clearly defined, and it is used with compatible strengthening chords and horizontal support frames. This makes it more appropriate for engineered load-bearing applications than generic support products with uncertain structural compatibility.
Stand-alone diagonal bracing may resist certain lateral forces, but it does not necessarily provide the same geometric control or vertical load transfer as a frame designed to connect the upper and lower truss zones. The HD200 component acts as part of a coordinated system rather than as an isolated brace.
When the frame is installed with the correct horizontal support elements, the resulting arrangement can create a more stable load-bearing loop. This integrated approach can simplify structural analysis and make the relationship between members easier to understand during assembly and inspection.
For contractors operating several bridge projects, interchangeability can be a major commercial and logistical advantage. Standard HD200 support frames can be included in inventory systems, transported between sites, and replaced with matching components when required.
One-off fabrications often require separate drawings, material sourcing, welding procedures, dimensional checks, and installation instructions. Standardized frames reduce these repeated tasks and can shorten preparation time, particularly in emergency or accelerated construction situations.
Bailey bridge components are often used repeatedly on different projects. A reusable product must tolerate transportation, lifting, assembly, disassembly, storage, and exposure to changing site conditions. Standardized Q355B frames can support a more organized reuse program when they are properly inspected and maintained between projects.
Reusable components should be checked for deformation, cracking, corrosion, damaged welds, elongated bolt holes, missing identification, and other signs of deterioration. The benefit of a standardized frame is that inspection criteria and replacement procedures can be applied consistently across multiple units.
The quality of a fabricated structural component is determined by the entire manufacturing process. It begins with material selection and continues through drawing review, cutting, forming, fit-up, welding, dimensional inspection, surface treatment, storage, and final dispatch. A reliable supplier must control these stages as a connected process rather than treating final inspection as the only quality activity.
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. has developed its business around the design, manufacture, erection, and leasing of Bailey bridges, launching gantry systems, hanging baskets, pier formwork, bridge steel formwork, and related steel structures. This product range gives the company practical experience with the way individual components perform inside larger bridge and construction systems.
A manufacturer involved in complete bridge systems can evaluate a support frame from more than a fabrication perspective. It can consider how the frame connects to trusses, how it affects erection procedures, how it interacts with formwork and temporary works, and how it contributes to system-level stability.
This engineering-oriented approach is valuable when customers require more than a standard catalog item. Projects may involve unusual spans, limited site access, special loading conditions, rapid deployment, or integration with existing bridge components. Experience with multiple steel products helps the supplier understand these coordination issues and provide more practical technical support.
Q355B steel is specified for the HD200 Vertical Support Frame. Material control should include verification of grade, thickness, heat or batch identification, surface condition, and relevant documentation. Maintaining traceability helps connect incoming material with production records and final inspection results.
Material handling also matters. Plates and sections should be stored to limit contamination, uncontrolled corrosion, impact damage, and distortion. Proper identification prevents different grades or thicknesses from being mixed during fabrication. These basic controls contribute directly to the reliability of the finished product.
Dimensional accuracy begins before welding. Cutting equipment and procedures should produce consistent edges and profiles while limiting excessive thermal distortion. Cut components require inspection for correct length, width, hole locations, edge quality, and alignment with approved drawings.
Where welding is required, edge preparation must be suitable for the specified joint. Inconsistent preparation can lead to incomplete fusion, excessive weld volume, or localized stress concentrations. A disciplined preparation process makes subsequent fit-up and welding more predictable.
Fit-up is especially important for a frame whose purpose includes maintaining truss spacing and geometry. Components should be positioned using suitable jigs, templates, fixtures, or controlled measurement procedures. The production team should verify squareness, straightness, hole alignment, center distances, and overall dimensions before permanent welding is completed.
Controlled fit-up reduces the risk that a frame will be difficult to install in the field. It also helps prevent forced connections, which can introduce unintended stresses or cause workers to modify the product during erection.

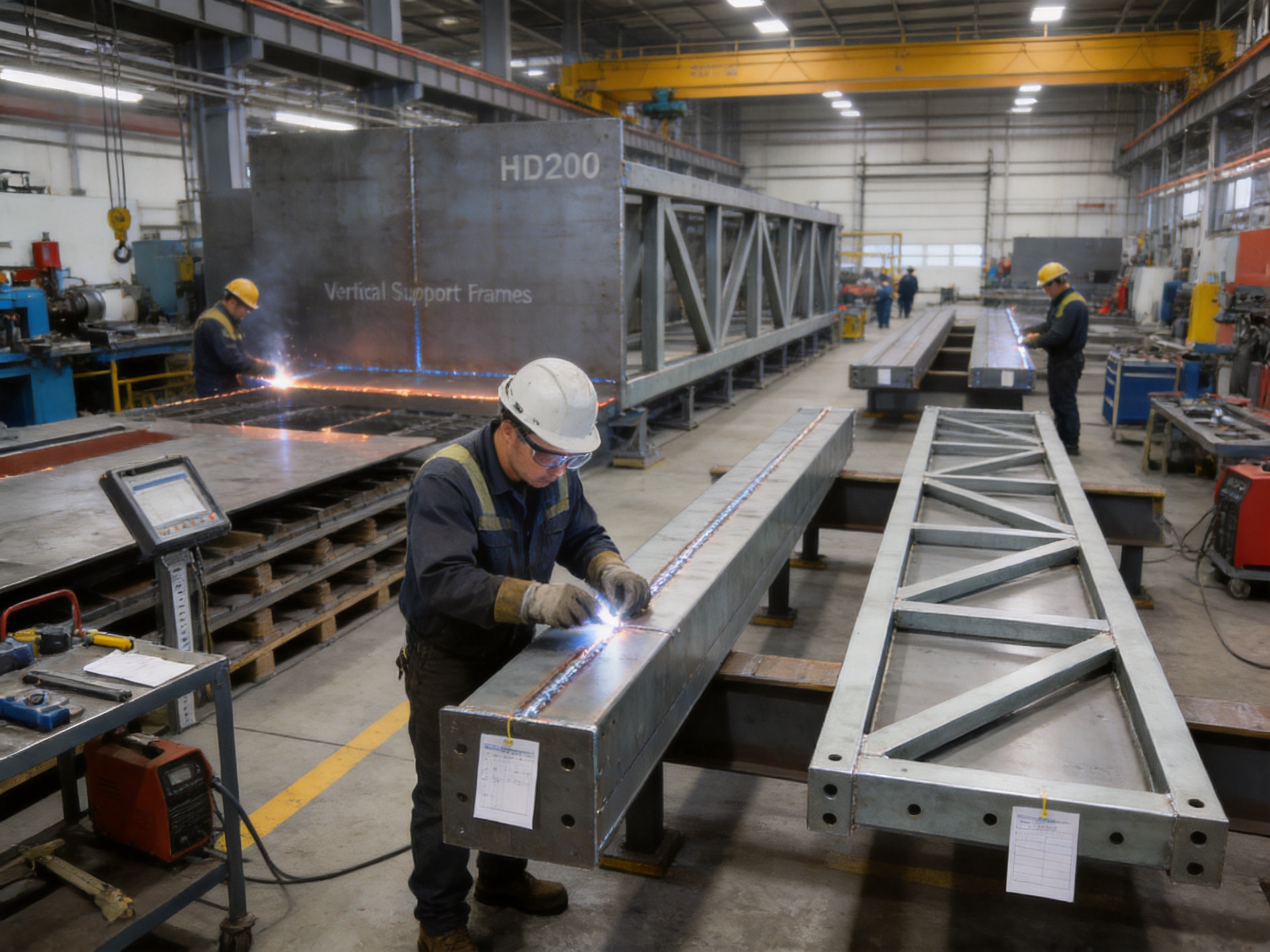

Welding transforms individual steel pieces into a structural assembly, so welding quality is central to product performance. Appropriate welding procedures, qualified operators, suitable consumables, correct heat input, and proper joint cleaning should be used according to the applicable project requirements.
Welds should be visually inspected for continuity, surface defects, undercut, overlap, porosity, cracking, excessive spatter, and other irregularities. Where required by the project or governing standard, additional nondestructive testing can be applied to selected or critical welds.
Welding sequence also affects dimensional stability. A controlled sequence can reduce accumulated distortion and help preserve the frame’s designed geometry. After welding, the frame should be checked again because heat input may alter straightness or spacing even when individual welds appear acceptable.
The specified dimensions of 1774 × 820 × 50 mm for the 730 type and 1774 × 570 × 50 mm for the 480 type provide clear inspection references. The center distance arrangement must also be checked because connection accuracy is essential for system compatibility.
Inspection may include overall length and width, thickness, diagonal measurements, straightness, flatness, squareness, hole diameter, hole location, and connection alignment. Inspection records help confirm that production results match the approved design and provide useful documentation for customers and project engineers.
Steel bridge components may be exposed to rain, humidity, mud, salt, construction dust, and repeated handling. Surface preparation and protective coating should therefore be selected according to the project environment, expected service period, and maintenance plan.
Storage should keep frames off the ground and provide drainage and ventilation. Components should be stacked in a manner that prevents excessive point loading or bending. Identification marks should remain visible so that 730 and 480 types are not confused during shipment or installation.
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. is located in an industrial area of Zhenjiang, Jiangsu Province, China. Established in 2017, the company has expanded from construction and industrial material activities into a comprehensive enterprise serving bridge and temporary works projects.
Its capabilities cover design, manufacturing, erection, leasing, and technical support for several classes of engineered steel products. These include Bailey steel bridges, Type 321 Bailey truss sections, HD200 or Type 200 truss sections, triangular and diamond hanging baskets, bridge steel formwork, pier formwork, launching gantry systems, and related steel structures.
This broad product scope creates several advantages for HD200 frame customers. First, the company understands that a bridge component must work with other components rather than operate independently. Second, it can support projects that require multiple product categories, such as a temporary bridge combined with a launching system or a formwork support arrangement. Third, experience with erection and leasing gives the manufacturer insight into transportation, field handling, reuse, and maintenance concerns.
The company also provides customized fabrication, design and system planning, technical support, and quality management. These services are useful when a customer needs a standard HD200 frame supplied in a project-specific quantity, a complete truss package, or an engineered combination of bridge and temporary support products.
For international customers, manufacturing strength is closely connected to communication and documentation. Product identification, packing lists, dimensional records, material information, installation guidance, and inspection documentation all help reduce misunderstandings across different engineering teams. A supplier capable of coordinating manufacturing and technical communication can make procurement more efficient and improve site readiness.
The frame can be used as part of an HD200 temporary highway bridge where a modular, rapidly assembled structure is required. Such bridges may provide access during permanent bridge replacement, road widening, flood recovery, or construction detours.
In highway applications, the final design must consider vehicle class, lane width, impact effects, fatigue, wind, deck configuration, approach conditions, and foundation capacity. The vertical support frame contributes to the truss system but must be installed as part of the complete design.
Emergency bridge projects often require components that can be transported, assembled, and placed quickly. Standardized frames support this objective because they can be stocked in advance and used with familiar HD200 erection methods.
After floods, earthquakes, landslides, or infrastructure failures, a temporary bridge may restore access for rescue vehicles, construction equipment, or local traffic. The vertical support frame helps maintain the stability of the truss during loading and use, while the modular design supports rapid replacement or extension of damaged access routes.
Large construction sites often require temporary crossings for cranes, trucks, concrete delivery vehicles, excavators, and material transport. A modular HD200 bridge can provide a controlled route over rivers, excavations, rail corridors, existing roads, or unfinished structures.
The frame is valuable in this context because construction loads can be heavy and uneven. Equipment may stop, turn, or operate close to the bridge centerline, producing load patterns different from ordinary traffic. Engineers can use the HD200 system’s standardized arrangement to evaluate these conditions and select an appropriate truss configuration.
Bailey-type components can be adapted for guide beams, tower columns, gantry hangers, bridge erection machines, and other temporary construction arrangements. In these systems, vertical support frames can help stabilize the structural assembly and transfer loads generated during launching or lifting.
Erection systems may experience temporary load cases that do not occur after completion, including concentrated equipment loads, cantilever effects, lifting reactions, wind during assembly, and partial-support conditions. The frame can contribute to stability during these stages when incorporated into an approved erection design.
The HD200 Vertical Support Frame is also applicable to large formwork support systems. Bridge deck formwork, pier construction, segmental work, and other concrete operations may require a temporary steel framework capable of supporting wet concrete, reinforcement, workers, equipment, and construction impact.
In formwork applications, control of deflection is important because excessive movement can affect concrete geometry and surface quality. A three-dimensional support arrangement using vertical frames, horizontal frames, and strengthening members can provide a more stable platform than isolated supports.
Bridge construction frequently requires temporary platforms, access towers, working supports, and erection frames around piers. The HD200 frame can be incorporated into these arrangements when the dimensions, connections, and load paths are verified by the project engineer.
Its standardized nature makes it easier to combine with other products supplied for bridge construction, including steel formwork, hanging baskets, and launching equipment. This system compatibility can reduce the number of unrelated structural products required on a project.

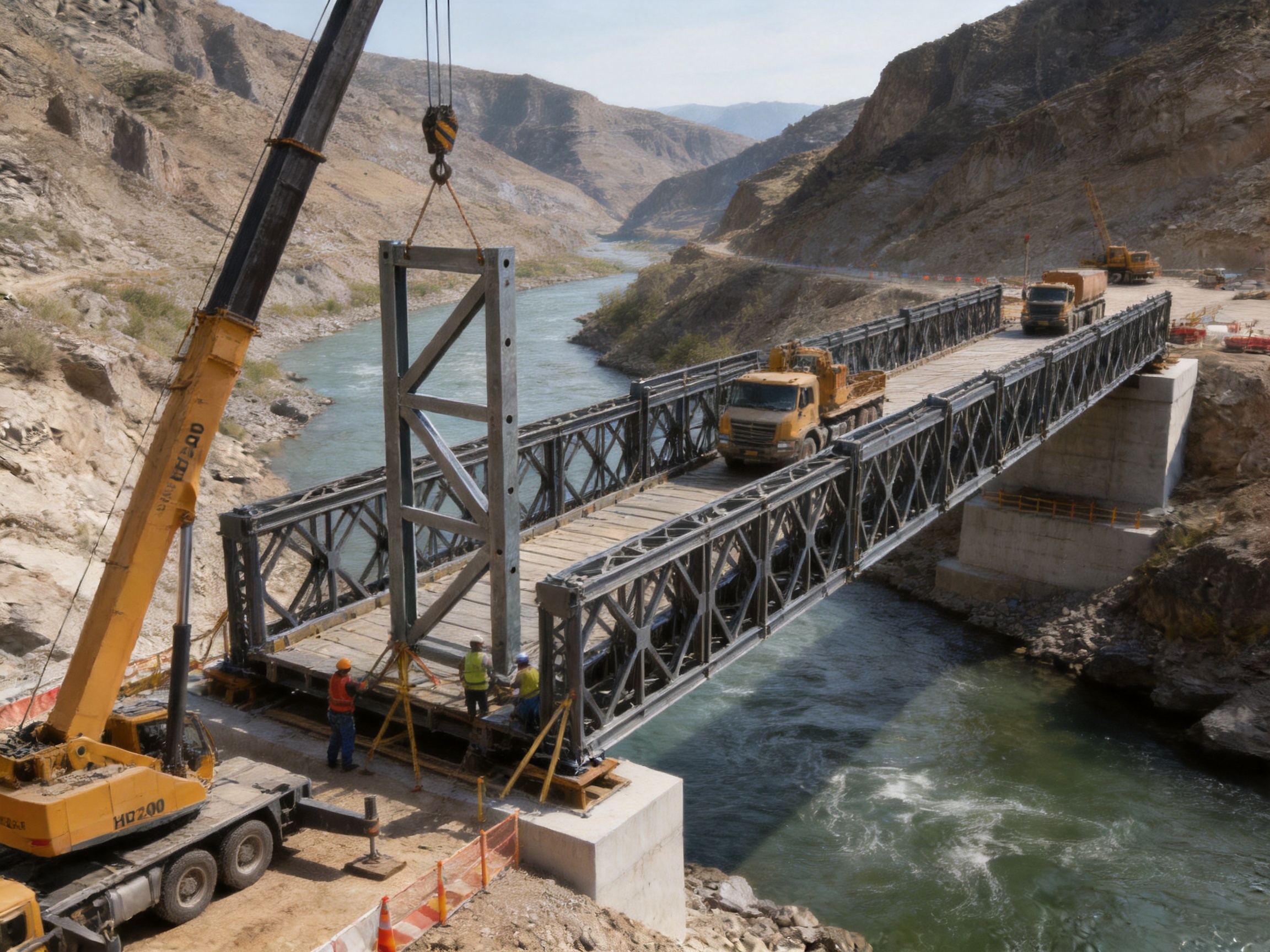

Correct installation is essential to realize the benefits of a precision-fabricated frame. Before assembly, the project team should review approved drawings, confirm the selected model, inspect delivered components, prepare the foundation or support points, and verify that all connection hardware is available.
The 730 type and 480 type must not be substituted without confirmation because their widths correspond to different HD200 spacing arrangements. Each frame should be checked for identification, visible damage, deformation, corrosion, and missing parts before it is placed into the structure.
During installation, workers should verify that the frame is seated correctly and that connecting members are aligned without excessive force. Bolt holes should align naturally. If holes do not align, the cause should be investigated rather than corrected through uncontrolled flame cutting, drilling, or forced assembly.
Temporary bracing may be required during erection, particularly when the bridge has not yet reached its final three-dimensional configuration. The stability of a partially assembled structure can differ significantly from the stability of the completed bridge. Erection sequencing, lifting points, temporary supports, wind conditions, and exclusion zones should be addressed in the construction method statement.
Foundation conditions are also important. The frame transfers forces through the truss and support arrangement to the bridge bearings, piers, abutments, or temporary foundations. If the foundation has insufficient bearing capacity or uneven settlement, even a strong steel frame may not perform as intended. Ground investigation, bearing checks, leveling, drainage, and settlement monitoring should therefore form part of the project plan.
After installation, the completed system should be inspected for truss alignment, frame position, connection tightness, bracing continuity, deck condition, bearing seating, and clearance. A controlled load test or proof-load procedure may be required by the project specifications or local authority.
A systematic quality program should cover both the individual frame and the complete bridge system. The following inspection categories are useful for procurement and project planning.
| Inspection stage | Recommended checks | Purpose |
|---|---|---|
| Incoming material | Steel grade, thickness, identification, surface condition, documentation | Confirm that raw materials meet the specified requirements |
| Fabrication preparation | Cutting dimensions, edge condition, hole positions, component identification | Prevent dimensional and assembly errors |
| Fit-up | Squareness, straightness, alignment, center distance, joint preparation | Maintain the designed geometry before welding |
| Welding | Procedure compliance, operator qualification, weld appearance, distortion control | Support structural integrity and repeatable production |
| Final dimensions | Overall length, width, thickness, diagonal, flatness, connection locations | Confirm compatibility with the HD200 system |
| Surface protection | Surface preparation, coating condition, coverage, damage repair | Improve resistance to environmental exposure |
| Dispatch | Identification, packing, quantity, lifting points, shipping protection | Prevent loss or damage during transport and handling |
| Site acceptance | Deformation, corrosion, missing hardware, installation alignment | Verify readiness before incorporation into the bridge |
Inspection requirements should be adapted to the project’s governing standard and contractual documents. Some projects may require mill certificates, welding procedure records, welder qualifications, dimensional inspection reports, coating records, or nondestructive testing reports. International projects may also require specific certification formats or third-party inspection.
Traceability is particularly valuable for reusable bridge components. Each frame can be assigned an identification number that is recorded during manufacture, shipment, installation, inspection, removal, and storage. This history helps project managers determine whether a component is suitable for another deployment.
Modular bridge components are often selected because they can be reused. Reuse, however, should be managed through inspection and maintenance rather than assumed automatically. After each project, the frames should be cleaned and checked for mud, concrete residue, coating damage, impact marks, corrosion, and deformation.
Welded areas and connection zones deserve special attention because they may experience repeated handling and concentrated forces. Bolt holes should be checked for elongation or local damage. Frames that have been exposed to fire, collision, severe overload, flooding with corrosive water, or major accidental impact should receive a detailed engineering assessment before reuse.
Storage conditions affect service life. Components should be placed on supports that prevent direct ground contact and allow air circulation. Water should not collect inside or around structural details. Stacking should avoid excessive unsupported spans, and lifting should use suitable points and equipment to prevent bending.
Surface protection should be repaired when damaged. The repair method should be compatible with the original coating system and appropriate for the environment. In coastal, industrial, or high-humidity locations, more frequent inspections may be necessary.
A maintenance program can include pre-installation inspection, routine service inspection, post-event inspection, post-removal inspection, and periodic detailed assessment. This process helps preserve the value of the components and improves confidence when they are redeployed on new projects.
For contractors, purchasing a vertical support frame from a specialized bridge and steel-formwork manufacturer can provide benefits beyond the component itself. A supplier with broader system knowledge can help coordinate quantities, compatible models, supporting members, packaging, transport, and installation requirements.
Customers may require individual replacement frames, a complete HD200 bridge package, a temporary works system, or a combination of bridge components and formwork products. A supplier with experience in design, production, erection, and leasing can adapt its support to the scale of the project.
Customized fabrication is useful when the project includes special access limitations, unusual transportation dimensions, nonstandard coatings, accelerated delivery, or integration with existing inventory. Customization should still be controlled through approved drawings and documented engineering review. The objective is not simply to change dimensions but to preserve structural compatibility and quality control.
For governments and infrastructure authorities, standardized bridge components can support emergency preparedness. Stockpiled HD200 frames and related truss members can be deployed when roads, culverts, or permanent bridges are damaged. A clear inventory system, periodic inspection schedule, and preplanned erection procedure can improve response capability.
For engineering companies, the availability of reliable component data simplifies preliminary design and construction planning. Dimensions, material information, connection details, and manufacturing records can be incorporated into structural calculations, method statements, lifting plans, and inspection documents.
A vertical support frame is only one part of a larger structural solution, but the manufacturer’s experience with complete systems can influence the quality and practicality of the product. Bridge components must be designed and fabricated with awareness of transportation, lifting, site assembly, temporary stability, final loading, and removal.
A company engaged in Bailey bridges, launching gantries, hanging baskets, and bridge formwork is familiar with the challenges of temporary steel structures. These challenges include rapid assembly, changing load conditions, limited working space, repeated handling, variable foundations, and the need to coordinate several structural systems at once.
Experience in leasing can also provide useful feedback. Rental and reuse operations expose components to repeated assembly cycles and diverse site environments. Observations from these operations can help identify common damage points, improve packing methods, refine inspection practices, and support better customer guidance.
The company’s location in Jiangsu Province provides access to an established industrial and transportation environment. Its proximity to major regional transport routes supports the movement of fabricated steel products, although delivery schedules, export documentation, port arrangements, and project-specific logistics should always be confirmed for each order.
Most importantly, supplier strength should be evaluated through verifiable evidence: approved drawings, material documents, inspection records, production capability, reference projects, quality procedures, technical communication, and after-sales support. These factors provide a more meaningful basis for comparison than price alone.
The HD200 Vertical Support Frame is a structural component, not a universal solution for every bridge or temporary works requirement. Its application must be reviewed by qualified engineers. Span, load, support condition, truss arrangement, deck type, wind, seismic effects, temperature, fatigue, impact, construction sequence, and foundation capacity can all affect the final design.
The stated span range and high-load suitability are indicative of the system’s intended engineering scope. They should not be interpreted as a guaranteed capacity for every configuration. The number of trusses, panel arrangement, bracing, strengthening chords, bearings, deck system, and connection condition must be selected through project-specific calculations.
Likewise, Q355B material does not eliminate the need for design verification. Structural capacity may be governed by buckling, local instability, weld strength, bolt strength, connection eccentricity, bearing failure, foundation settlement, or serviceability limits rather than by the yield strength of the steel alone.
Responsible use includes following local regulations, applicable bridge design codes, occupational safety requirements, lifting rules, and temporary works procedures. Installation should be supervised by competent personnel, and no component should be modified without engineering approval.
The primary function is to help transfer vertical loads between the upper and lower portions of an HD200 truss system. It also contributes to deformation control, truss geometry, lateral stability, and resistance to structural overturning when used with horizontal support frames and strengthening chords.
The two types have the same overall length of 1774 mm and use Q355B structural steel, but their widths are different. The 730 type measures 1774 × 820 × 50 mm, while the 480 type measures 1774 × 570 × 50 mm. They correspond to different HD200 truss spacing arrangements and must be selected according to the approved system design.
The specified material is Q355B structural steel. The final performance of the frame also depends on plate quality, fabrication accuracy, welding, surface protection, connections, and project-specific design verification.
It is primarily suited to modular, temporary, emergency, semi-permanent, and heavy-duty support applications. It may be incorporated into a longer-term structure only when the complete system is designed, approved, protected, inspected, and maintained according to the applicable engineering requirements.
Yes. It can be incorporated into large formwork support systems, including bridge-related construction arrangements, provided that the support frame, horizontal members, strengthening chords, foundations, and connections are designed for the relevant concrete, reinforcement, equipment, and construction loads.
Its standardized HD200 configuration makes it suitable for emergency and rescue bridge systems when the required components are available and the structure is properly designed. Emergency use still requires safe foundation preparation, erection control, load restrictions, inspection, and approval by responsible engineering personnel.
Users should verify the model, dimensions, identification, material and inspection documents, visible condition, connection holes, straightness, coating, quantity, and compatibility with the bridge drawings. The foundation, bearings, lifting equipment, connection hardware, temporary bracing, and erection sequence should also be prepared.
Project-specific fabrication and technical coordination may be available. Any modification should be based on approved engineering drawings and should preserve the required load path, connection compatibility, material specification, fabrication quality, and inspection requirements.
The main advantage is system compatibility. The HD200 frame is produced for a defined modular truss arrangement, whereas generic supports may not match the required spacing, connection locations, structural depth, or load path. A standardized frame can also simplify installation, inspection, replacement, and reuse.
Yes, reuse is a common advantage of modular bridge components. Before reuse, each frame should be inspected for deformation, cracking, corrosion, weld damage, damaged holes, coating deterioration, and other defects. Components exposed to serious impact or overload should undergo a detailed engineering assessment.
No. The capacity of the complete bridge depends on the entire structural arrangement, including trusses, decks, transoms, braces, support frames, strengthening chords, connections, bearings, foundations, and loading conditions. The frame is an important component but cannot be used to determine total bridge capacity by itself.
Services may include standard component manufacturing, customized fabrication, design coordination, system planning, technical support, quality management, erection assistance, and leasing. The exact scope should be confirmed according to the project requirements and contract.
The HD200 Vertical Support Frame is a key component for creating stable, heavy-duty modular bridge and temporary support systems. By connecting the structural zones of the HD200 truss, it helps transfer vertical loads, control deformation, maintain geometry, and contribute to three-dimensional stability. Its two configurations, 730 and 480, provide flexibility for matching different HD200 spacing arrangements.
The use of Q355B structural steel, standardized dimensions, and system-compatible geometry gives the frame practical advantages over improvised supports, light-duty components, and unrelated fabricated members. Its value is increased when it is used with horizontal support frames, strengthening chords, appropriate bracing, reliable connections, and properly designed foundations.
Manufacturing quality is equally important. Material control, precision cutting, controlled fit-up, qualified welding, dimensional inspection, surface protection, and careful storage all contribute to dependable field performance. A supplier with experience in Bailey bridges, launching gantries, hanging baskets, pier formwork, bridge steel formwork, design, erection, and leasing can provide broader technical understanding and more coordinated project support.
For contractors, governments, engineering companies, and emergency response organizations, the product offers a practical foundation for temporary bridges, emergency crossings, construction access routes, formwork support systems, and other engineered steel structures. When selected and installed through a qualified design and inspection process, the HD200 Vertical Support Frame can help deliver a safer, more efficient, and more reusable modular bridge solution.
1. Product technical information for the HD200 Vertical Support Frame, including model dimensions, center distance arrangement, and Q355B material specification.
2. Manufacturer information concerning Bailey bridges, HD200 or Type 200 truss sections, launching gantry systems, bridge steel formwork, hanging baskets, pier formwork, and related engineered steel structures.
3. General principles of structural steel fabrication, including material traceability, welding quality control, dimensional inspection, surface protection, and component storage.
4. General engineering practice for modular temporary bridges, emergency crossings, temporary works, construction access structures, and bridge erection systems.
5. General principles of temporary works design, including load-path verification, erection-stage stability, foundation assessment, inspection, maintenance, and safe reuse of structural components.
