Caisson Formwork for Durable Marine and Underwater Concrete Construction

Caisson construction is one of the most demanding activities in civil and marine engineering. Whether a caisson is used as a foundation unit for a cross-sea bridge, a harbor structure, a breakwater, an offshore facility, or a major port installation, the construction system must perform reliably under conditions that are considerably more severe than those found in ordinary land-based projects. Water pressure, tidal movement, salt spray, seawater immersion, sediment, corrosion, restricted working space, and difficult access all place exceptional demands on construction equipment.

Caisson formwork is designed to meet these requirements. It provides a controlled mold for the accurate production of reinforced concrete caisson structures while helping contractors manage water exposure, concrete pressure, dimensional tolerances, and repetitive construction cycles. A properly engineered system combines high-strength structural components, durable panel materials, reliable sealing arrangements, lifting provisions, and a practical assembly method. The result is a formwork solution that can support safe and efficient caisson prefabrication and underwater concreting.

Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. manufactures and supplies bridge steel formwork and related engineered steel structures for demanding infrastructure projects. With experience in Bailey bridges, launching gantries, hanging baskets, pier formwork, and other bridge-support systems, the company applies structural fabrication knowledge to the design and production of caisson formwork. Its capabilities cover customized fabrication, system planning, technical support, and quality management for contractors, government organizations, and engineering companies.

This article explains the function, structure, benefits, design considerations, manufacturing process, and application value of caisson formwork. It also examines why a purpose-designed steel system can offer advantages over improvised, conventional, or poorly adapted alternatives in marine construction.

1. Understanding Caisson Formwork

A caisson is a large structural unit, usually made from reinforced concrete, that is used to create foundations, retaining structures, quay walls, marine terminals, bridge substructures, or offshore components. Depending on the project, the caisson may be prefabricated on land, constructed in a dry dock, assembled in a temporary construction basin, or concreted in stages before being floated, transported, sunk, or installed in its final position.

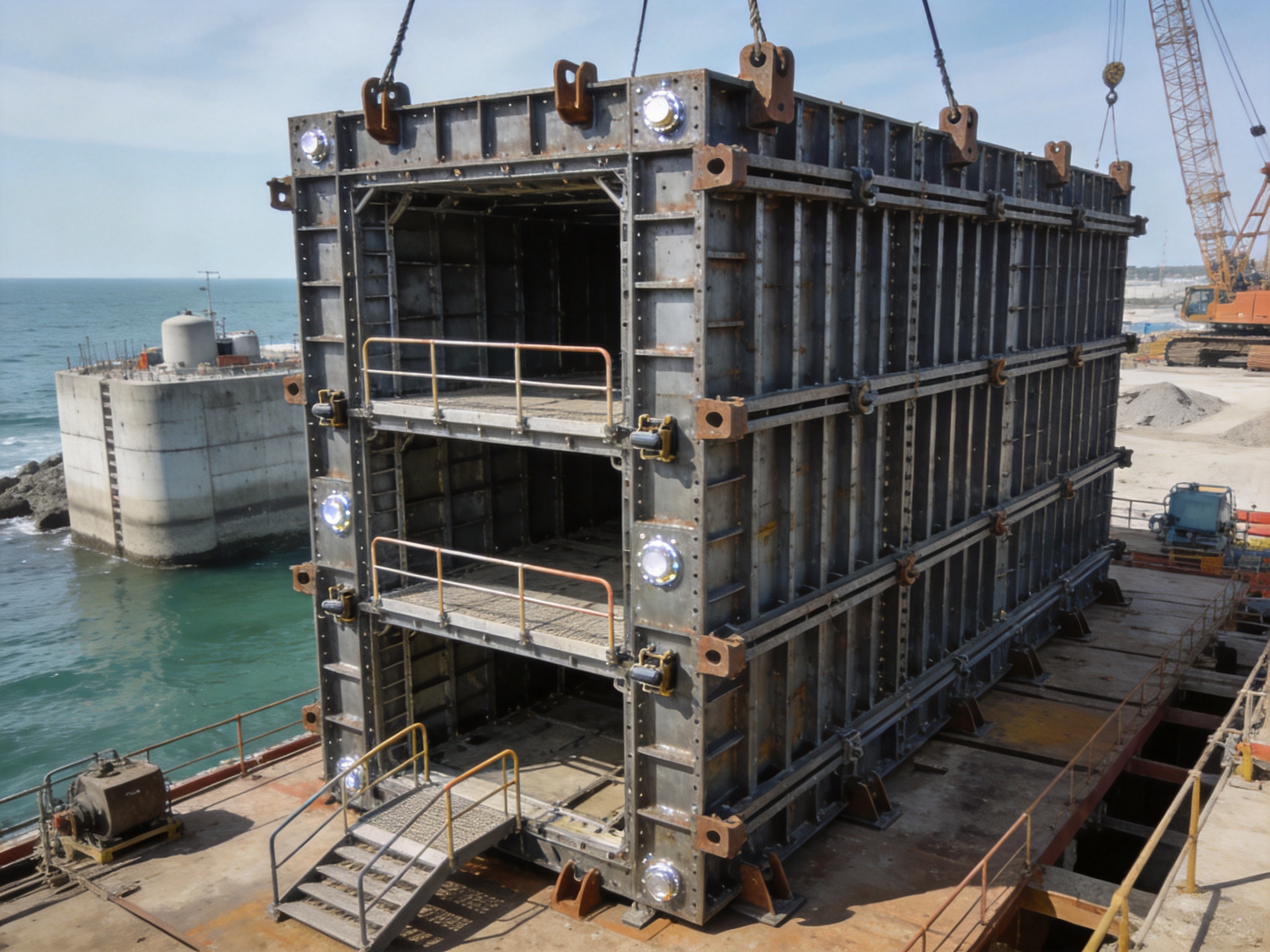

Caisson formwork is the temporary or reusable steel mold system that defines the geometry of the concrete structure during casting. It may form external walls, internal chambers, diaphragms, deck slabs, corner sections, openings, or other special details. The formwork must hold its shape while fresh concrete is placed and compacted. It must also remain stable during lifting, repositioning, cleaning, and repeated use.

Unlike simple building formwork, caisson formwork is exposed to an environment where water protection and corrosion resistance are central design considerations. The system may come into direct contact with seawater, salt-laden air, wet concrete, cleaning water, and abrasive materials. In underwater concreting, the formwork may also be subject to hydraulic pressure, buoyancy effects, currents, and changing water levels.

The design objective is therefore broader than simply producing a smooth concrete surface. A complete caisson formwork system should provide dimensional accuracy, structural strength, water-control performance, efficient assembly, safe handling, repeatability, and long-term durability in a marine environment.

1.1 Main Components

A typical caisson formwork system may include steel face panels, stiffening ribs, walers, corner assemblies, internal frames, tie systems, working platforms, access openings, lifting lugs, alignment devices, sealing strips, support brackets, and connection hardware. The exact arrangement depends on the caisson dimensions, wall thickness, reinforcement layout, casting sequence, and handling method.

Steel face panels create the concrete-contact surface. Their flatness and dimensional precision influence the appearance and geometry of the completed structure. Reinforcing ribs and walers distribute pressure across the panel and limit deflection. Internal frames help maintain the shape of large or deep formwork units, while corner assemblies ensure that intersections remain accurate and sufficiently rigid.

Where construction takes place near or below the waterline, sealing details become especially important. Joints between panels may be designed with overlapping plates, compression seals, replaceable strips, or carefully machined contact surfaces. These details help reduce unwanted water ingress and prevent the loss of cement paste during concrete placement.

1.2 Prefabrication and In-Situ Use

Caisson formwork can be configured for prefabrication in a controlled yard, dock, or casting basin. In this arrangement, large formwork modules are assembled on a stable working surface, reinforcement is installed, and concrete is placed under controlled conditions. Once the concrete reaches the required strength, the caisson can be removed from the formwork and prepared for transportation or installation.

In other projects, the formwork is used directly at the construction location. It may be installed on a temporary platform, inside a cofferdam, on a barge, or around an underwater reinforcement cage. The system must then accommodate restricted access, changing water conditions, marine lifting operations, and the need for rapid repositioning.

A modular configuration is particularly valuable because the same main components can often be adapted to different caisson dimensions. By changing panel arrangements, corner modules, internal frames, or extension sections, contractors can reduce the amount of completely new equipment required for each project.

2. Why Marine Construction Requires Specialized Formwork

Marine construction creates a combination of structural and environmental loads that ordinary formwork is not always designed to withstand. Fresh concrete exerts significant lateral pressure, especially when placed rapidly or when the mix has high workability. Water on the opposite side of a panel can create additional pressure differences. Tidal movement and wave action may produce repeated or changing loads on exposed components.

Saltwater is another major concern. Chlorides can accelerate corrosion of unprotected carbon steel, particularly at joints, welds, cut edges, bolt holes, and areas where water remains trapped. Corrosion may reduce the thickness of structural members, weaken connections, damage alignment surfaces, and increase maintenance requirements. A formwork system intended for marine use must therefore incorporate suitable materials, protective treatment, drainage, and cleaning provisions.

Marine access also affects the design. A large formwork unit may need to be lifted by crane, moved by barge, lowered into a casting chamber, or assembled in sections by a limited crew. Components that are too heavy, difficult to connect, or impossible to inspect can slow down the entire project. Practical handling is therefore an important part of engineering performance.

Concrete quality depends on the stability and tightness of the mold. If a panel deflects, the caisson wall may exceed its specified tolerance. If joints open, cement paste may escape, leaving honeycombing, voids, or weak edges. If water enters an active pour, the concrete mix may segregate or suffer from reduced strength and durability. Specialized caisson formwork helps manage these risks through rigid construction and controlled interfaces.

3. Core Advantages of High-Quality Caisson Formwork

3.1 High Structural Strength

High-strength steel formwork is capable of resisting the pressure generated by fresh concrete and the forces associated with handling and installation. A rigid frame reduces panel deformation, supports accurate wall thickness, and helps maintain the intended geometry throughout the pour.

Strength is not limited to the steel plate itself. The complete load path includes face panels, ribs, walers, ties, corner connections, lifting points, and support members. A well-designed system distributes loads through these components instead of concentrating excessive stress at a small number of points. This improves reliability and reduces the likelihood of localized distortion.

Compared with lightweight improvised molds, engineered steel formwork offers better resistance to repeated loading and more consistent performance during multiple casting cycles. It can also be designed for the specific dimensions and concrete pressures of the project rather than relying on generic assumptions.

3.2 Resistance to Water Penetration

Water control is essential when producing caisson structures. A sealed formwork arrangement helps prevent unwanted water from entering the concrete zone and limits the escape of cement paste through panel joints. This is particularly important for underwater or tidal construction, where working conditions can change during a pour.

Sealing performance depends on the accuracy of the panel edges, the design of joints, the condition of seals, and the installation procedure. A robust system uses repeatable connections and accessible sealing details so that crews can inspect, clean, replace, and adjust them as required. Good sealing also reduces the amount of corrective work needed after stripping.

Compared with formwork assembled from irregular plates or timber, engineered caisson panels provide more predictable joint behavior. This helps contractors plan concrete placement with greater confidence and reduces the risk of leakage-related defects.

3.3 Corrosion Resistance in Marine Environments

Caisson formwork must tolerate salt spray, tidal exposure, seawater immersion, wet concrete, and repeated washing. Materials and protective systems should be selected according to the project environment and expected service period. Proper surface preparation, protective coating, edge treatment, and drainage design can significantly improve the working life of the equipment.

The use of steel components specifically prepared for demanding infrastructure applications provides an advantage over ordinary untreated fabrication. Vulnerable areas such as welds, corners, cut edges, bolt holes, and drainage points require particular attention. A complete corrosion-control plan should also include cleaning after use, inspection of damaged coatings, and timely repair.

Corrosion resistance improves not only durability but also dimensional stability. Severe corrosion can change the fit of joints and make panels difficult to align. By preserving the shape and connection quality of the system, protective treatment contributes directly to construction accuracy.

3.4 Dimensional Accuracy

Caisson structures often have strict requirements for wall thickness, internal chamber dimensions, corner geometry, openings, and installation interfaces. Formwork manufactured with accurate drawings, controlled fabrication, and systematic inspection can help contractors achieve these tolerances more consistently.

Accurate formwork reduces the need for grinding, patching, cutting, and other corrective work. It also helps maintain the correct position of embedded items, reinforcement clearances, lifting points, and connection components. This is particularly valuable when several caissons must be produced to matching dimensions.

3.5 Reusability and Lifecycle Value

Although steel formwork may require a higher initial investment than temporary low-cost alternatives, its reuse potential can provide stronger lifecycle value. Durable panels can be cleaned, inspected, repaired, and used for multiple caisson units. Modular components may also be adapted for related marine or bridge applications.

Repeated use reduces fabrication waste and shortens preparation time for later casting cycles. It can also improve consistency because the contractor works with a known system rather than creating a new mold for every unit. When the project involves many identical or similar caissons, this benefit becomes especially significant.

3.6 Safer Handling and Assembly

Engineered lifting points, standardized connections, accessible working areas, and clearly defined assembly sequences can make formwork operations safer. Components that are designed for crane handling reduce the need for unplanned rigging arrangements. Proper platforms and access provisions can also reduce the risk of workers climbing on unstable surfaces.

Safety performance still depends on site procedures, lifting plans, competent supervision, and compliance with applicable regulations. However, a formwork system designed with handling and access in mind provides a better foundation for safe work than a collection of improvised panels and temporary supports.

4. Advantages Compared with Conventional or Improvised Alternatives

Several types of formwork may be considered for caisson construction, including timber molds, traditional plate formwork, prefabricated modular steel panels, and project-specific heavy-duty steel systems. The best choice depends on the size of the caisson, production quantity, environmental exposure, required finish, budget, and handling method. For demanding marine structures, engineered steel caisson formwork often offers a superior combination of strength, accuracy, durability, and reuse.

Evaluation Factor	Improvised or Conventional Formwork	Engineered Caisson Formwork
Resistance to concrete pressure	May require extensive temporary bracing and frequent adjustment	Designed with integrated panels, ribs, walers, and connection systems
Water-control performance	Joint quality can vary and leakage may be difficult to manage	Sealed interfaces and repeatable connections support better control
Marine durability	Often vulnerable to saltwater, moisture, and repeated exposure	Materials and protective treatment can be selected for marine conditions
Dimensional consistency	Dependent on manual fabrication and site adjustment	Based on controlled drawings, fabrication, and inspection
Reuse potential	Limited when timber or irregular components deteriorate quickly	Suitable for repeated casting cycles and modular adaptation
Assembly efficiency	May require extensive on-site cutting, welding, and modification	Standardized modules and prepared connections reduce site work
Lifecycle value	Low initial cost may be offset by repairs, delays, and replacement	Higher durability can reduce recurring preparation and maintenance costs

Timber formwork can be useful for small, temporary, or non-repetitive work, but it may swell, absorb water, deteriorate, or lose dimensional accuracy when exposed to marine conditions. It also tends to require more frequent replacement and may be less suitable for large concrete pressures.

Traditional steel plate formwork is stronger than timber, but its performance depends heavily on the quality of local fabrication and the arrangement of external supports. If the panels are not designed as a coordinated system, joint leakage, deformation, difficult stripping, and excessive assembly time may result.

Engineered modular formwork improves the relationship between the individual parts. Panels, stiffeners, braces, lifting points, and seals are developed as one system. This integrated approach is particularly useful when the caisson must be cast repeatedly or when underwater access makes on-site modification difficult.

5. Manufacturing Process and Engineering Quality

The performance of caisson formwork begins before steel cutting or welding. It starts with understanding the project requirements and translating them into a coordinated design. A professional manufacturing process should connect structural calculations, production drawings, material control, fabrication, surface treatment, trial assembly, inspection, and technical documentation.

5.1 Project Requirement Review

The first stage is a technical review of the caisson geometry, concrete mix, casting sequence, environmental conditions, handling method, and expected number of uses. Important information includes the external and internal dimensions, wall thickness, openings, corner details, reinforcement arrangement, water levels, access restrictions, crane capacity, and required tolerances.

The manufacturer can then determine whether the system should be supplied as large modules, smaller transportable panels, internal and external assemblies, or a combination of fixed and adjustable sections. This early review helps prevent conflicts between formwork, reinforcement, embedded components, lifting equipment, and construction access.

5.2 Engineering Design and Detailing

Design engineers develop panel layouts, support arrangements, connection details, lifting provisions, working platforms, and sealing interfaces. Structural checks consider concrete pressure, handling loads, local stress, buckling risk, connection strength, and expected repetition. The design should also consider stripping forces and the sequence in which panels will be removed.

Computer-aided design supports accurate detailing and helps coordinate the formwork with reinforcement and concrete placement. Three-dimensional modeling can be especially useful for complex caisson interiors, sloped surfaces, curved walls, openings, and multiple casting stages. Clear drawings reduce ambiguity during fabrication and site assembly.

Design optimization can reduce unnecessary steel without compromising strength. Efficient stiffener spacing, rational module sizes, and standardized connections may lower weight, improve crane handling, and simplify transport. The best design balances structural capacity with practical installation requirements.

5.3 Material Selection and Preparation

Material selection should reflect the marine exposure category and the intended service life of the formwork. Steel plates and structural sections must have suitable mechanical properties, weldability, and thickness. Connection hardware should be selected for the expected loads and exposure. Seal materials should remain effective under water, pressure, temperature variation, and repeated installation.

Before fabrication, steel materials should be identified, checked, and prepared. Cutting surfaces must be clean and accurate. Plates may be straightened, edge-prepared, drilled, or machined according to the approved drawings. Proper preparation improves fit-up and reduces the amount of correction required during welding.

5.4 Precision Cutting and Forming

Controlled cutting and forming processes help maintain panel dimensions and improve interchangeability between modules. CNC-based cutting or similarly controlled methods can produce accurate holes, edges, and plate profiles. Where panels require bending or shaped sections, forming should be carried out in a way that minimizes distortion and preserves the intended geometry.

Accurate component preparation is important because small errors can accumulate in large assemblies. A panel that is only slightly out of square may create alignment problems when connected to several adjacent panels. Dimensional control at the cutting and forming stage therefore contributes to the final accuracy of the entire caisson mold.

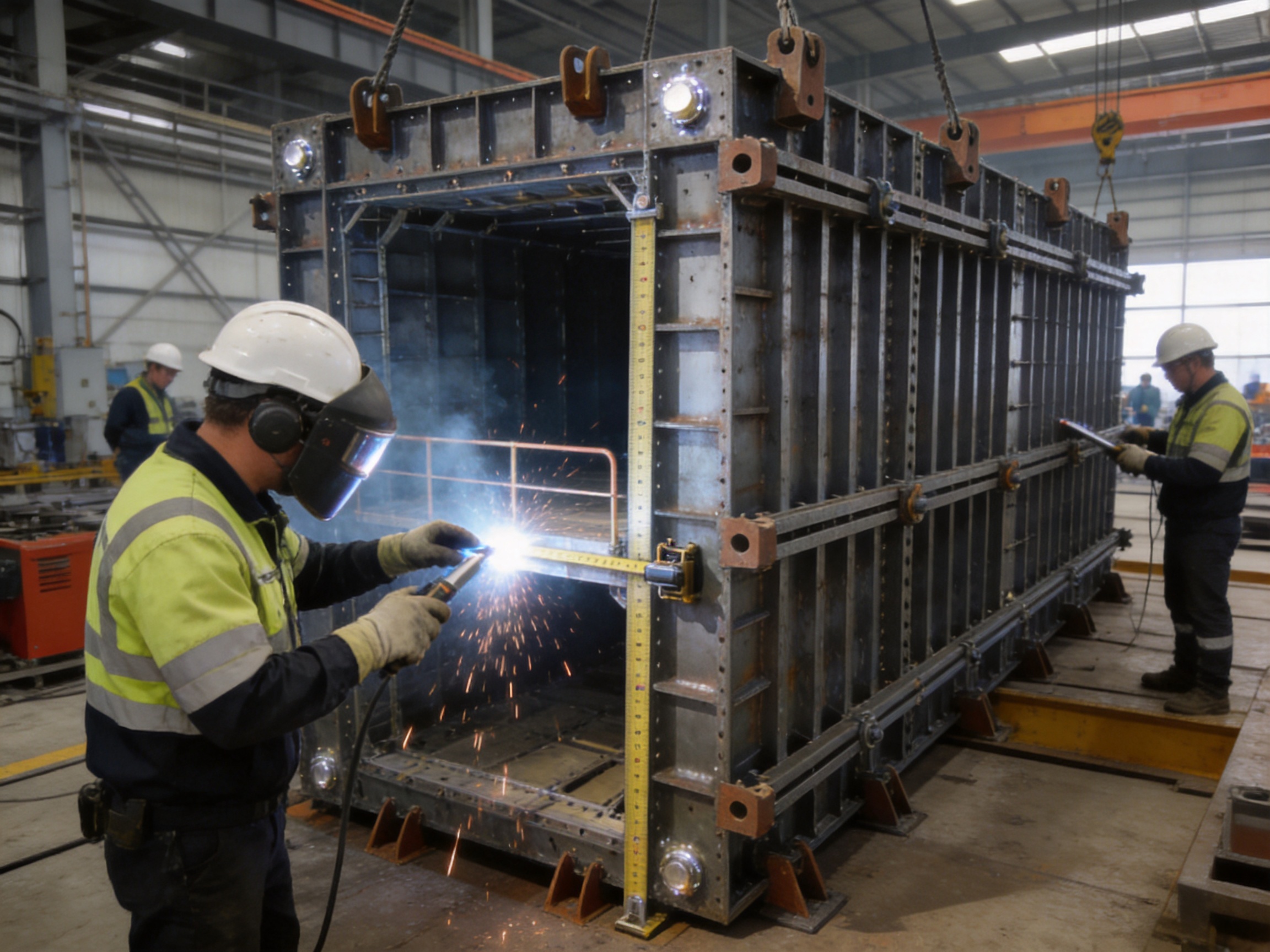

5.5 Welding and Structural Assembly

Welding joins the face plates, stiffeners, ribs, walers, brackets, lifting elements, and frames into a stable assembly. Welds must be planned according to the load path and the thickness of the connected materials. Excessive heat input can cause distortion, so fabrication sequences should be selected to control shrinkage and maintain flatness.

Experienced welders and organized production procedures help achieve consistent weld quality. Critical weld areas may receive additional visual, dimensional, or non-destructive inspection according to the project specification. Particular attention should be given to lifting lugs, high-load brackets, corner assemblies, and connections that may experience repeated handling.

After welding, assemblies are checked for straightness, squareness, twist, surface condition, and connection fit. Corrections are preferably completed before protective coating so that repaired areas can be treated properly and the final finish remains continuous.

5.6 Trial Assembly and Fit-Up Verification

Trial assembly is an important quality-control step for modular formwork. Selected panels or the complete system can be assembled in the workshop to verify bolt-hole alignment, module dimensions, corner fit, access provisions, lifting balance, and the operation of adjustable components.

This process identifies problems before the equipment reaches a remote marine site. It can also confirm the sequence for installation and removal. Where a complete trial assembly is impractical because of size, representative sections and critical interfaces should still be checked.

5.7 Surface Treatment and Corrosion Protection

After fabrication and inspection, steel surfaces are prepared for protective treatment. The treatment may include cleaning, removal of rust and contaminants, primer application, intermediate coating, and a suitable finish coat. The selected system should be compatible with the expected exposure and with contact conditions during concrete casting.

Coating thickness, coverage, curing, and edge protection should be monitored. Areas damaged during transport or installation require prompt repair. A well-maintained coating system extends the useful life of the formwork and helps preserve smooth panel surfaces.

5.8 Final Inspection and Documentation

Final inspection may include dimensional checks, weld inspection, coating inspection, hardware verification, marking, and review of the assembly drawings. Components should be identified so that the site team can match them with the correct location in the system.

Technical documents may include general arrangement drawings, component lists, lifting information, assembly instructions, inspection records, and maintenance recommendations. Clear documentation is especially valuable when the formwork is shipped to international projects or used by multiple construction teams.

6. Design Features for Water Resistance and Durability

Water resistance is achieved through a combination of geometry, joint design, material selection, and installation control. No single seal can compensate for poorly aligned panels or damaged contact surfaces. The formwork should therefore be designed so that joints are easy to access, inspect, compress, and maintain.

6.1 Panel Joint Configuration

Panel joints can be arranged with overlapping plates, stepped interfaces, compression seals, or other engineered details. The choice depends on the direction of water pressure, the required surface finish, the stripping method, and the number of expected uses. A good joint should maintain contact when the formwork is loaded and should not create an excessive projection or recess in the concrete.

6.2 Corner and Transition Details

Corners are vulnerable locations because they combine changes in direction, concentrated concrete pressure, and multiple connection lines. Reinforced corner modules help preserve the angle and prevent opening during casting. Internal corners may also require special treatment to support stripping and avoid damage to the concrete edge.

Transitions around openings, lifting recesses, pipe penetrations, and embedded elements should be detailed early. Inadequate clearance can make reinforcement installation difficult or force workers to modify the formwork on site. Purpose-made transition pieces improve both water control and construction efficiency.

6.3 Drainage and Cleaning

Water trapped against steel surfaces can accelerate corrosion. Where practical, the system should include drainage paths or arrangements that allow water to escape during storage and cleaning. After each use, concrete residue, salt deposits, and sediment should be removed from panel faces, joints, and connection areas.

Cleaning is not only a maintenance task. It also affects concrete quality. Residual hardened concrete can prevent panels from closing fully, damage seals, and create unwanted marks on the next caisson. A regular cleaning and inspection routine helps preserve performance over repeated cycles.

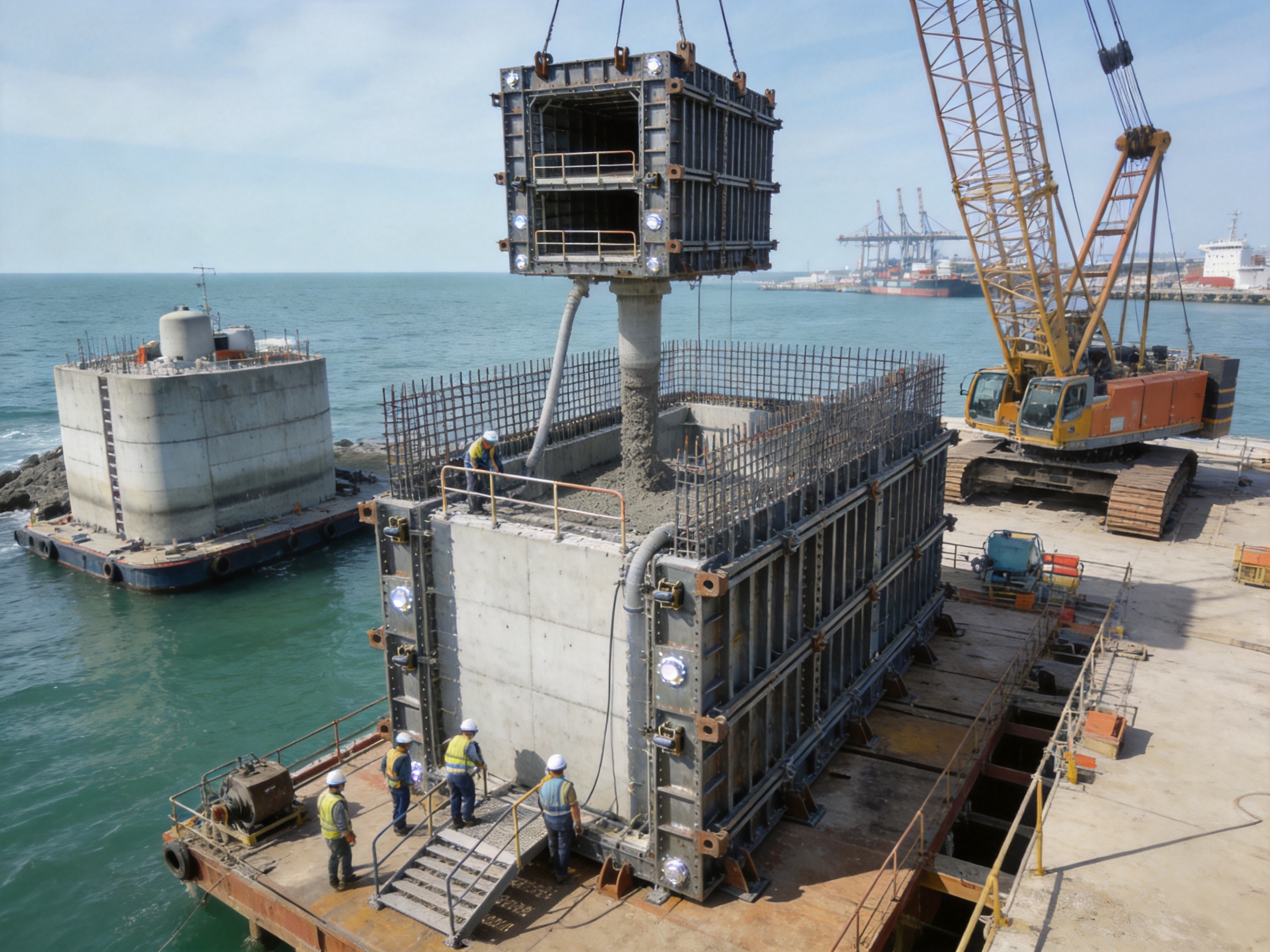

7. Application in Caisson Prefabrication

Caisson prefabrication allows much of the work to be performed in a controlled environment before the structure is moved to its final location. This can improve productivity, reduce underwater activities, and simplify quality control. Caisson formwork is central to this process because it determines the geometry and repeatability of each unit.

For a typical prefabrication cycle, the base or working platform is prepared first. The external and internal formwork modules are then positioned and aligned. Reinforcement cages, embedded items, lifting components, and service openings are installed. The formwork is inspected before concrete placement, with particular attention to dimensions, seals, reinforcement cover, and access.

Concrete is placed according to the approved sequence. The formwork must remain stable while the concrete rises and must withstand vibration or other compaction methods. After curing, the formwork is loosened and stripped in a controlled sequence. The panels are cleaned, inspected, repaired if necessary, and prepared for the next unit.

When multiple caissons are required, cycle time becomes an important economic factor. Modular steel formwork can help shorten the period between successive pours because the main components are already prepared and can be repositioned without extensive reconstruction. Consistent panel geometry also supports consistent finished dimensions across the production series.

8. Application in Underwater Concreting

Underwater concreting requires careful control of concrete flow, water movement, segregation, and contamination. Formwork must remain stable and sufficiently sealed while the concrete is delivered through the selected placement method. Depending on the project, concrete may be placed through tremie pipes, pumps, bottom-dump arrangements, or staged systems designed by the marine engineer.

Caisson formwork provides the boundary required to retain the concrete and establish the intended shape. Its high-strength frame resists pressure, while its sealed interfaces help reduce the inflow of water and loss of cement paste. Alignment systems are especially important because visibility and access may be limited once the formwork is partly submerged.

Underwater work should be supported by a detailed method statement covering installation, inspection, concrete placement, monitoring, emergency response, and stripping. The formwork manufacturer’s technical information should be integrated into this plan. Site teams must also account for tides, currents, weather, barge movement, crane capacity, and diver or remotely operated equipment requirements where applicable.

9. Company Manufacturing and Project Strengths

Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. is located in Shangdang Town Industrial Park, Dantu District, Zhenjiang City, Jiangsu Province, China. Established in 2017, the company developed from a business focused on construction materials, industrial materials, and metal processing materials into a comprehensive enterprise serving bridge and infrastructure construction.

The company’s product range includes Bailey steel bridges, Type 321 Bailey truss sections, HD200 and Type 200 Bailey truss sections, triangular and diamond hanging baskets, bridge steel formwork, pier formwork, launching gantry systems, and related engineered steel structures. This range gives the company experience in structural steel design, fabrication, connection systems, load-bearing components, field assembly, and project-oriented customization.

Although caisson formwork is a specialized product, its engineering requirements overlap with other heavy bridge-support systems. The ability to fabricate large steel assemblies, manage modular components, provide lifting provisions, and support erection planning is valuable when developing formwork for ports, cross-sea bridges, and offshore works.

The company’s manufacturing strength lies in combining design and fabrication rather than treating the formwork as a collection of generic steel plates. Project information can be converted into a coordinated system of panels, frames, braces, joints, and accessories. This approach helps contractors receive equipment that is better matched to the construction sequence and site conditions.

Customized fabrication is another important capability. Caissons vary widely in length, width, height, chamber arrangement, wall thickness, corner shape, and installation method. A supplier able to adapt the panel layout and support system can offer a more practical solution than a standard product that requires extensive site modification.

Technical support and system planning further strengthen project execution. The formwork supplier can assist with module arrangement, handling concepts, assembly sequences, and production considerations. This coordination is helpful for international contractors that require clear drawings, organized component identification, and reliable communication during fabrication and delivery.

The company also emphasizes customer-first service, integrity, practical operation, innovation, cooperation, and quality management. These principles are relevant to specialized infrastructure equipment, where the value of the product depends not only on the steel itself but also on engineering response, production control, delivery coordination, and after-sales technical assistance.

10. Project Planning and Selection Considerations

10.1 Caisson Geometry

The formwork supplier should receive complete geometry information, including overall dimensions, wall thickness, internal cells, bevels, openings, construction joints, and special profiles. If the caisson includes curved or inclined surfaces, these should be represented clearly in approved drawings or three-dimensional models.

10.2 Casting Sequence

The casting sequence determines the pressure applied to each panel and influences the arrangement of ties, walers, and access openings. A system designed for one continuous pour may differ significantly from a system used for staged wall, diaphragm, or roof construction.

10.3 Handling and Transportation

Large modules can reduce assembly time but may exceed crane or transport limits. Smaller modules are easier to move but require more connections. The preferred arrangement should consider the capacity of cranes, barges, trailers, lifting beams, storage areas, and the available workforce.

10.4 Environmental Exposure

The supplier should understand whether the formwork will be exposed to open seawater, tidal splash, brackish water, freshwater, salt spray, or sheltered dock conditions. Exposure duration, cleaning arrangements, storage conditions, and the number of reuse cycles all affect the appropriate corrosion-protection strategy.

10.5 Concrete and Reinforcement Requirements

Formwork must provide enough space for reinforcement installation, spacers, embedded items, inspection, and concrete flow. Tie positions should not conflict with reinforcement or create unacceptable penetrations. The internal arrangement should support the required concrete cover and prevent displacement during the pour.

10.6 Safety and Access

Working platforms, ladders, handrails, access openings, lifting points, and temporary supports should be included in the planning stage. The construction team should be able to inspect seals, tighten connections, place concrete, monitor the pour, and strip the panels without relying on unsafe improvised access.

11. Installation, Operation, and Maintenance

Before installation, all components should be checked against the drawings and component list. Panel faces should be clean, seals should be in good condition, and connection hardware should be free from excessive corrosion or damage. The foundation or supporting platform must be level and capable of carrying the assembly loads.

Assembly should follow a controlled sequence. Primary panels are positioned first, followed by alignment members, internal frames, corner modules, ties, platforms, and accessories. Connections should be tightened progressively so that the system remains aligned rather than pulling one side out of position.

Before concrete placement, the complete formwork should be inspected. Checks may include dimensions, verticality, level, joint closure, seal condition, tie installation, lifting-point security, reinforcement clearance, and the condition of access facilities. Any water ingress observed during pre-pour testing should be corrected before the pour begins.

During placement, concrete should be introduced according to the approved rate and sequence. Sudden concentration of concrete at one point can create local pressure that exceeds the assumptions used in design. The formwork should be monitored for movement, leakage, unusual sound, or visible distortion. If a problem occurs, placement should be managed according to the project emergency procedure.

Stripping should not begin until the concrete has reached the required condition and the responsible engineer or site manager has authorized removal. Panels should be released gradually to avoid damaging concrete edges or imposing sudden loads on lifting equipment. After removal, the formwork should be cleaned and examined before being moved to storage or the next casting position.

Maintenance should include removal of concrete residue, inspection of welds and lifting points, tightening or replacement of damaged hardware, repair of seals, touch-up of protective coatings, and verification of panel flatness. Components exposed to seawater should be rinsed with clean water when practical and stored in a way that allows drainage and ventilation.

12. Quality, Efficiency, and Sustainability Benefits

Quality control in caisson construction is closely linked to formwork performance. Accurate, rigid, and sealed panels help reduce concrete defects and improve the consistency of completed units. This can lower the need for repair materials, surface treatment, and rework.

Efficiency is improved when formwork can be assembled and stripped in predictable cycles. Standardized modules reduce layout time, while prepared connections reduce site welding and cutting. Faster cycles can be particularly valuable in marine projects where weather windows, tide conditions, vessel availability, and temporary facilities affect the construction schedule.

Reusable steel formwork also supports more responsible resource use. A durable system can serve multiple casting cycles instead of being discarded after one operation. Reduced waste, fewer replacement materials, and lower site modification requirements can improve the environmental profile of the construction process.

Efficient manufacturing contributes to sustainability as well. Accurate cutting reduces material waste, planned fabrication reduces rework, and modular design supports future adaptation. At the end of its useful life, steel components can generally be repaired, repurposed, or recycled more readily than many temporary mold materials.

13. Frequently Asked Questions

Q1: What is caisson formwork used for?

Caisson formwork is used to shape reinforced concrete caissons during prefabrication, staged construction, or underwater concreting. It can form external walls, internal chambers, diaphragms, corners, openings, and other structural details for marine and offshore infrastructure.

Q2: Why is steel preferred for large caisson formwork?

Steel provides high strength, stiffness, dimensional stability, and good reuse potential. It can be fabricated into large rigid panels and reinforced frames capable of resisting fresh concrete pressure and handling loads. With appropriate protection, steel is also suitable for repeated exposure to marine environments.

Q3: Can the formwork be customized for different caisson sizes?

Yes. A modular system can be configured with different panel lengths, heights, corner units, internal frames, and extension sections. Customization should be based on the caisson drawings, casting sequence, lifting capacity, transport limitations, and expected reuse requirements.

Q4: How does caisson formwork resist water penetration?

Water resistance is achieved through accurate panel interfaces, reinforced joints, compression seals or other sealing arrangements, and correct installation. The design must also account for alignment, water pressure, concrete pressure, and the condition of seals during repeated use.

Q5: Is caisson formwork suitable for seawater exposure?

It can be suitable when the materials, welds, coatings, seals, drainage, and maintenance plan are selected for the actual marine environment. Saltwater exposure should be considered during design rather than treated as an afterthought. Regular cleaning and coating repair are also important.

Q6: Can the system be reused for several caissons?

Yes. Reuse is one of the main advantages of engineered steel formwork. After each cycle, panels should be stripped carefully, cleaned, inspected, and repaired if necessary. The number of reuse cycles depends on design, handling practice, exposure, maintenance, and the required concrete finish.

Q7: What information is required for a quotation and design proposal?

Useful information includes caisson dimensions, wall and slab thicknesses, internal layout, openings, concrete grade and placement method, casting sequence, water conditions, required surface finish, number of units, lifting equipment, transport limitations, and project schedule. Drawings or three-dimensional models are highly beneficial.

Q8: Does the manufacturer provide technical support?

A complete project-oriented service may include customized fabrication, design and system planning, assembly drawings, component identification, technical communication, and support for handling or erection planning. The exact scope should be confirmed according to the project requirements.

Q9: How should the formwork be maintained after underwater use?

Concrete residue and salt deposits should be removed, and the panels should be rinsed and dried where practical. Seals, bolts, welds, lifting lugs, coatings, and alignment surfaces should be inspected. Damaged protective coatings and worn seals should be repaired before the next installation.

Q10: What makes a supplier suitable for an international marine project?

A suitable supplier should be able to interpret project drawings, provide organized engineering documentation, manufacture accurately, control quality, package components securely, and communicate clearly with the contractor. Experience with bridge steel structures and modular systems is also valuable because marine formwork often requires heavy fabrication and complex site handling.

14. Conclusion

Caisson formwork is a critical part of reliable marine and underwater concrete construction. The system must do more than create a mold. It must resist concrete pressure, control water penetration, tolerate corrosion, maintain dimensional accuracy, support safe handling, and deliver repeatable performance over multiple construction cycles.

High-strength steel panels, reinforced frames, accurate joints, durable protective treatment, and modular connections provide clear advantages over improvised or lightly constructed alternatives. These features help contractors reduce leakage, deformation, rework, maintenance, and schedule risk. When combined with an appropriate casting sequence and disciplined site procedures, purpose-designed caisson formwork can improve both construction quality and lifecycle value.

Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. brings relevant experience in Bailey bridges, launching gantries, hanging baskets, pier formwork, bridge steel formwork, and engineered steel structures. Its capabilities in customized design, steel fabrication, modular production, technical support, and quality management make it well positioned to supply formwork solutions for caisson prefabrication, underwater concreting, ports, cross-sea bridges, and offshore engineering projects.

For each project, the final system should be developed from the actual caisson geometry, environmental exposure, concrete method, handling resources, and reuse plan. With careful engineering and manufacturing control, caisson formwork can provide the strength, water resistance, durability, and operational efficiency required for modern marine infrastructure.

References

1. American Concrete Institute. Guide to Formwork for Concrete.

2. American Concrete Institute. Specifications for Structural Concrete.

3. British Standards Institution. Temporary Works Equipment and Formwork Design Principles.

4. European Committee for Standardization. Eurocode 3: Design of Steel Structures.

5. International Organization for Standardization. Quality Management Systems—Requirements.

6. International Organization for Standardization. Corrosion Protection of Steel Structures by Protective Paint Systems.

7. International Federation for Structural Concrete. Guidance on Concrete Construction, Durability, and Marine Exposure.

8. Standard engineering practice for marine concrete placement, underwater construction, steel fabrication, lifting operations, and temporary works inspection.
