The Diamond Form Traveler is an advanced cantilever construction system designed for the in-situ construction of large-span prestressed concrete box girder bridges. Built around a rhombus-shaped load-bearing structure, the system combines high rigidity, low self-weight, precise movement, adaptable geometry, and comprehensive safety protection. These characteristics make it particularly suitable for bridge projects where conventional support systems are impractical, including deep valleys, navigable waterways, busy roads, railways, and locations with difficult ground conditions.
As bridge spans become longer and structural forms become more complex, contractors require construction equipment that can provide both reliable load support and efficient repositioning. A form traveler must support fresh concrete, reinforcement, formwork, workers, and construction loads while maintaining the required geometry of the bridge segment. It must then move forward accurately and safely to the next casting position without causing excessive stress to the completed structure. The Diamond Form Traveler is developed to meet these demands through a carefully engineered structural configuration and coordinated manufacturing process.
Manufactured and supplied by Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd., the Diamond Form Traveler benefits from the company’s experience in bridge launching gantries, hanging baskets, Bailey steel bridges, bridge formwork, and other engineered steel structures. The company provides design, fabrication, erection, leasing, technical support, and system planning services for contractors, infrastructure developers, government agencies, and engineering companies.
This article explains the working principles, structural advantages, manufacturing strengths, application value, safety features, and selection considerations of the Diamond Form Traveler.
A form traveler, also called a hanging basket or cantilever traveler, is a movable temporary support system used in the balanced cantilever construction of concrete bridges. During construction, the bridge deck is divided into segments. Each segment is cast in place from the end of a previously completed section. The form traveler supports the formwork and construction loads while the concrete is poured and cured. After the segment reaches the required strength, the traveler advances to the next position.

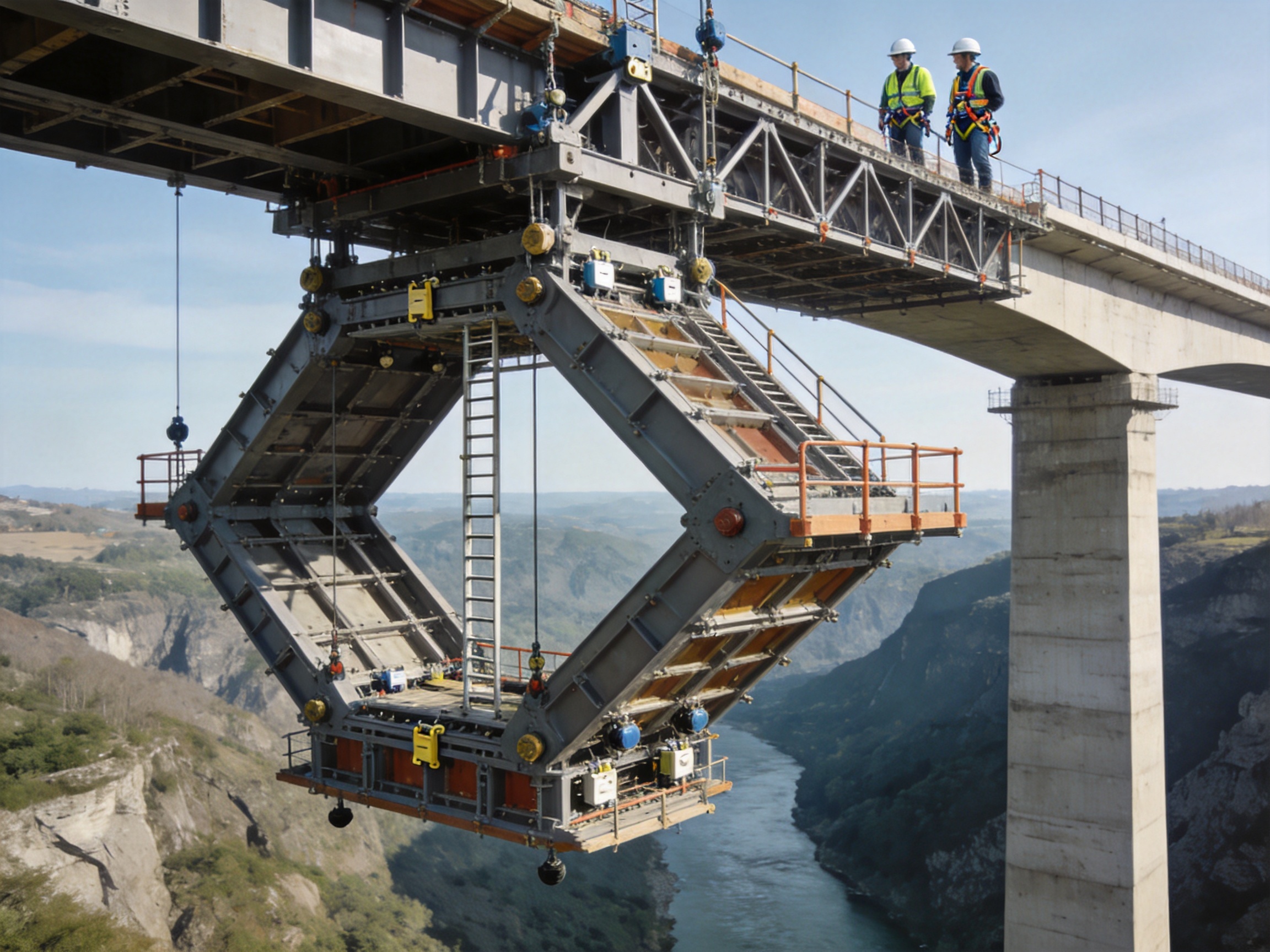

The Diamond Form Traveler receives its name from its rhombus-shaped main load-bearing frame. This geometry creates a stable structural arrangement in which the upper and lower members, front and rear supports, and connecting components work together as an integrated load-bearing system. Instead of relying on a single heavy beam or a loosely connected collection of components, the diamond configuration distributes working loads through multiple structural paths.
The system generally includes a main truss or frame, longitudinal and transverse support members, walking or sliding mechanisms, suspension and anchoring components, front and rear formwork supports, adjustment devices, working platforms, guardrails, and safety protection equipment. The exact arrangement can be customized according to bridge span, box girder dimensions, segment length, construction sequence, and site conditions.
During operation, the traveler is anchored to the completed portion of the bridge. The formwork is adjusted to the required elevation and alignment, reinforcement is installed, and concrete is placed for the next segment. Once the concrete has achieved the specified strength and the construction team completes the required release procedures, the traveler is moved forward in a controlled sequence. It is then fixed and adjusted before the next cycle begins.
This repeated construction cycle allows bridge segments to be built without extensive falsework from the ground. As a result, the system is especially valuable where ground-supported scaffolding would obstruct traffic, interfere with waterways, require excessive temporary foundations, or be difficult to install in mountainous terrain.
The most distinctive feature of the Diamond Form Traveler is its rhombus-shaped load-bearing structure. The geometry is intended to provide a balanced relationship between vertical support, longitudinal stability, and resistance to deformation. When fresh concrete and construction loads act on the formwork, the resulting forces are transferred through the traveler frame and into the bridge structure through designated anchorage and support points.
A rigid frame is important because formwork movement or excessive deflection can affect the dimensions, camber, alignment, and surface quality of the concrete segment. If the support structure is too flexible, the formwork may settle during concrete placement. Such movement can create dimensional deviations, localized stress, uneven concrete thickness, or difficulty during the next traveler cycle. The Diamond Form Traveler is designed to minimize these risks through high overall stiffness.
The rhombus arrangement also supports efficient force distribution. Structural members are positioned to cooperate as a system rather than functioning independently. The upper portion supports the working formwork and construction loads, while the lower and inclined members contribute to stability and load transfer. The result is a compact arrangement that can provide substantial rigidity without requiring an excessively heavy frame.
High stiffness and low self-weight are not contradictory when the structural configuration is properly engineered. A well-designed frame places steel where it contributes most effectively to load resistance and stability. This approach can reduce unnecessary material while preserving the stiffness required for accurate casting. The resulting equipment is easier to handle, imposes less additional load on the bridge, and can be more practical to transport and assemble.
The actual structural design must always be verified against the specific bridge project. Important design parameters include the weight of fresh concrete, formwork weight, reinforcement weight, equipment and personnel loads, impact or construction effects, wind conditions, eccentric loading, anchorage capacity, segment length, and the strength of the completed concrete supporting the traveler.
High rigidity is one of the most important advantages of the Diamond Form Traveler. The traveler must maintain its geometry while supporting the temporary loads associated with concrete placement. The rhombus-shaped frame is intended to reduce excessive deformation and provide a stable working platform for formwork installation, reinforcement placement, and concrete casting.
Compared with less rigid temporary support arrangements, a high-stiffness traveler can help improve control of segment geometry. It supports more consistent formwork alignment and reduces the possibility of sudden changes in elevation during casting. This is particularly important for long-span box girders, where small deviations can accumulate over multiple segments and affect closure accuracy.
High rigidity also contributes to worker confidence and operational stability. When the main frame remains stable during construction activities, the formwork and working platforms can be adjusted more predictably. This supports a more controlled construction cycle and helps reduce corrective work.
The self-weight of a form traveler becomes an additional load on the completed bridge segment and its anchorage system. Excessive equipment weight can increase stress in the cantilever, require larger anchorage components, and reduce the usable construction load margin. The Diamond Form Traveler is designed to achieve the required stiffness with a comparatively efficient structural arrangement.
Low self-weight can provide several practical benefits. It reduces the additional bending effect imposed on the bridge, decreases the demand on temporary anchoring, simplifies lifting and transportation, and may make installation more convenient at remote or difficult sites. The lower mass can also support faster repositioning when suitable mechanical or hydraulic movement equipment is used.
A low-weight design does not mean that the frame is lightly constructed. It means that the structure is engineered to avoid unnecessary material while maintaining strength, stiffness, and stability. Proper steel selection, member arrangement, welded joint quality, and dimensional control are essential to achieving this balance.
The traveler must move forward in a controlled and synchronized manner. Uneven movement can twist the frame, overload individual supports, damage anchorage components, or cause the formwork to shift out of alignment. The Diamond Form Traveler incorporates coordinated movement arrangements intended to keep the main frame and associated formwork moving together.
Precise forward movement is especially valuable when the bridge has varying cross-sections, changing deck elevations, different segment lengths, or complex alignment requirements. Operators can release, move, position, and anchor the traveler according to a defined sequence. Adjustment devices then allow the formwork to be fine-tuned before reinforcement and concrete operations begin.
Synchronous movement also reduces the need for repeated manual correction. This can improve cycle consistency and make the construction sequence easier to monitor. The movement system should be operated by trained personnel under an approved method statement, with checks for anchorage release, track condition, obstruction, weather, communication, and final locking.
Bridge structures do not always have uniform cross-sections. A box girder may include variable depth, changing width, curved geometry, sloped webs, widened sections, special diaphragms, or other irregular details. A form traveler that is designed for only one fixed shape may require extensive modification when conditions change.
The Diamond Form Traveler is suitable for adaptation to various irregular beam cross-sections through adjustable formwork, connection arrangements, and project-specific configuration. The main frame can be combined with customized front, side, bottom, and internal formwork systems according to the bridge design.
This adaptability can help contractors use a more consistent construction system across sections of the same project. It can also reduce the need to fabricate completely different temporary support systems for every structural variation. Before production, the bridge drawings and construction sequence should be reviewed to confirm adjustment ranges, clearance requirements, interference points, and the dimensions of each casting segment.

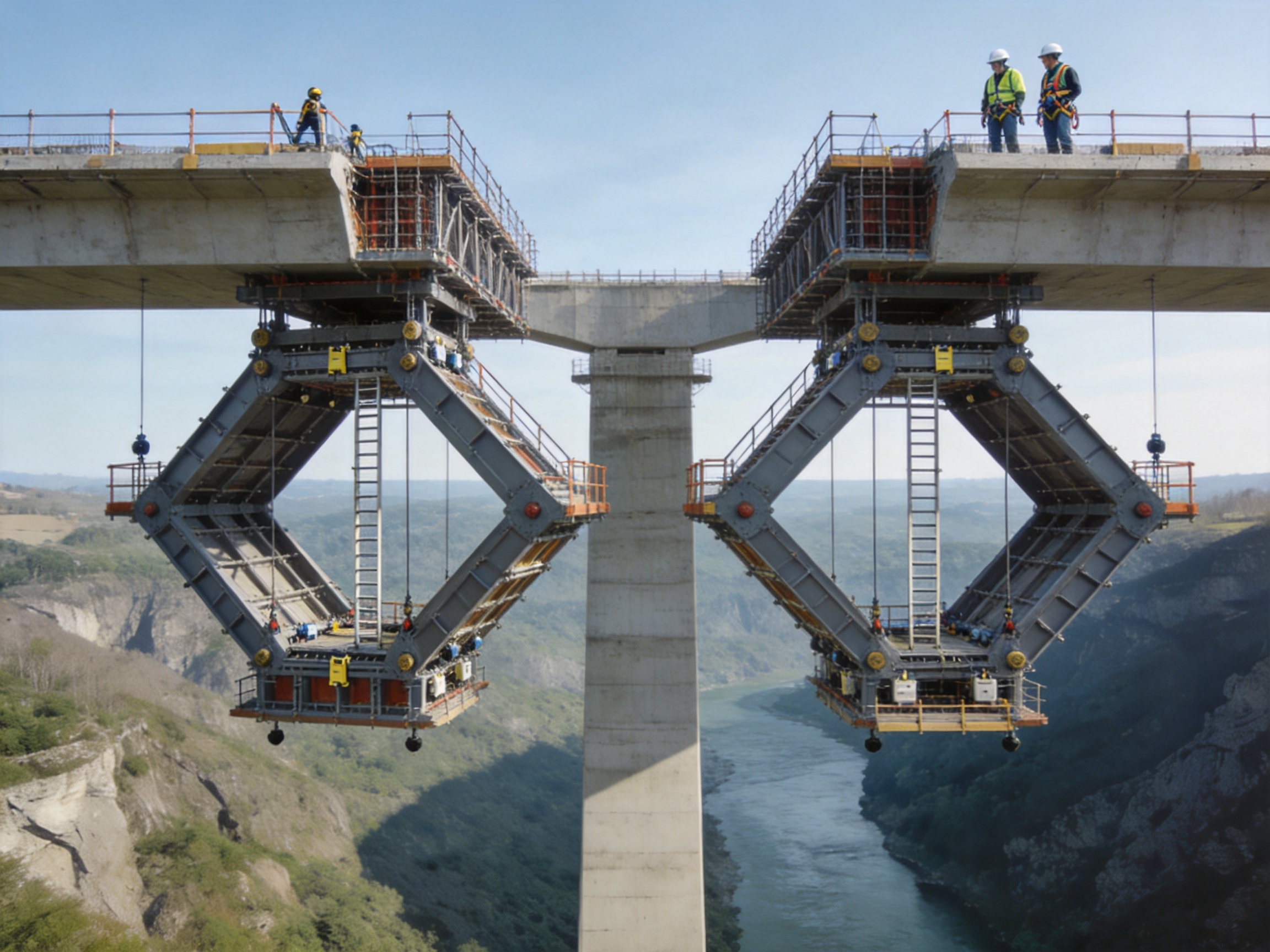

Balanced cantilever construction is widely used for large-span bridges because it reduces dependence on ground-level support. However, long cantilever segments generate demanding structural and construction conditions. The traveler must support considerable fresh concrete loads while remaining stable at the end of the cantilever.
The Diamond Form Traveler is designed for large-span, high-load, and complex-stress box girder construction. Its rigid frame, low self-weight, controlled movement, and adaptable formwork make it suitable for projects where the temporary equipment must work closely with the permanent bridge structure.
Applications may include highway bridges, railway bridges, municipal viaducts, river crossings, valley crossings, and other prestressed concrete structures. The final suitability of the system depends on engineering verification, including the bridge designer’s approval of the load effects, anchorage arrangement, construction stages, and local safety requirements.
Safety protection is integrated into the operating concept of the traveler. Working platforms, guardrails, access routes, toe boards, lifting points, locking devices, and other protective components can be configured according to project requirements. These features help provide a safer environment for formwork, reinforcement, inspection, and concrete placement activities.
Safety is not limited to physical guardrails. It also includes stable anchorage, clear movement procedures, reliable locking, inspection access, load control, communication between operators, and defined emergency measures. A traveler should never be moved or released until responsible personnel confirm that the required conditions have been met.
The protective system should be reviewed for each project, particularly where the bridge is high above ground, located in a windy area, crossing a navigable channel, or exposed to traffic and public access below.
Different form traveler designs are available for bridge construction, and each has suitable applications. The selection should be based on structural calculations, bridge geometry, site restrictions, available equipment, construction sequence, and total project cost. The Diamond Form Traveler offers several advantages when compared with basic or less integrated arrangements.
| Evaluation factor | Diamond Form Traveler | Potential limitation of basic arrangements |
| Structural configuration | Rhombus-shaped integrated load-bearing frame with multiple force-transfer paths | Less coordinated frames may require additional reinforcement or temporary bracing |
| Rigidity | High overall stiffness supports formwork stability and dimensional control | Flexible systems may experience greater deflection during concrete placement |
| Self-weight | Efficient member arrangement helps reduce unnecessary dead load | Heavy systems can increase cantilever and anchorage demand |
| Movement | Designed for precise synchronous forward movement | Uneven movement may cause twisting, misalignment, or localized overload |
| Geometry adaptability | Can be configured for irregular or changing box girder cross-sections | Fixed systems may require extensive modification for changing geometry |
| Construction use | Suitable for large-span, high-load, and complex-stress applications | Standard systems may be restricted by span, segment size, or loading conditions |
| Safety integration | Can incorporate working platforms, guardrails, access systems, and locking devices | Separate safety additions may be needed for less complete systems |
| Project support | Can be supplied with design planning, fabrication, erection, and technical assistance | Equipment-only procurement may place more coordination responsibility on the contractor |
The principal competitive advantage of the Diamond Form Traveler is the combination of rigidity, lightness, mobility, and adaptability. A system that excels in only one of these areas may not provide the same overall value. For example, a very rigid but excessively heavy frame can impose significant additional stress on the bridge. A very light frame with insufficient stiffness may compromise casting accuracy. A movable frame without precise synchronization can create operational and safety problems. The diamond configuration is intended to balance these requirements.
Another advantage is the possibility of project-specific engineering. Rather than treating the traveler as a completely standardized product, the supplier can review the bridge structure, segment dimensions, construction method, and site requirements before finalizing the configuration. This approach is useful when a project includes nonuniform cross-sections or unusual construction constraints.
The performance of a form traveler depends heavily on the quality of its preliminary design. Before fabrication, the supplier and contractor should review the general arrangement drawings, structural calculations, segment schedule, casting sequence, bridge alignment, working elevation, and expected construction loads.
Important design questions include the following:
What are the maximum length, width, and depth of each casting segment?
What is the weight of fresh concrete and reinforcement supported by the traveler?
Where are the permanent and temporary anchorage points located?
What changes occur in the box girder cross-section along the bridge?
How will the traveler be assembled and lifted at the initial working position?
What movement method will be used for forward travel?
What clearances are required around piers, diaphragms, tendons, utilities, and traffic zones?
What wind, temperature, access, and environmental conditions are expected?
How will the traveler be inspected, adjusted, and maintained during repeated construction cycles?
Customization may involve the main frame dimensions, formwork arrangement, suspension points, walking mechanism, platform layout, access ladders, guardrails, hydraulic or mechanical adjustment devices, and connection details. The aim is to produce a system that fits the bridge rather than forcing the bridge construction process to accommodate an unsuitable standard configuration.
Digital drawing and three-dimensional coordination can assist with the review of complex geometry. The design team can check the relationship between the traveler, box girder, reinforcement, post-tensioning ducts, embedded items, and temporary anchorage. Identifying interference before fabrication helps reduce site modification and supports a smoother installation process.
The design should also consider disassembly and reuse. A form traveler may be transferred between bridge units or used on both sides of a pier. Modular components, accessible bolted connections, practical lifting points, and replaceable adjustment parts can improve the system’s lifecycle value.
The reliability of a Diamond Form Traveler begins in the manufacturing workshop. Because the equipment functions as a temporary structural system under demanding construction loads, manufacturing accuracy and process control are essential. Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. combines steel fabrication experience with bridge equipment engineering to produce customized systems for different applications.
Production starts with a review of the approved design information. Engineers examine member sizes, connection details, weld requirements, adjustment ranges, assembly sequence, and transport limitations. The production team then prepares a manufacturing plan covering material procurement, cutting, forming, welding, machining, trial assembly, inspection, surface treatment, packing, and delivery.
This planning stage is important because a traveler contains many interconnected components. A small discrepancy in one connection or support location can affect the complete frame. Clear component identification and production drawings help control the relationship between individual parts and the final assembly.
Steel plates, sections, pipes, brackets, connection plates, and other components are prepared according to the approved design. Material selection should be matched to the required strength, weldability, thickness, environmental exposure, and fabrication method. Materials are identified and organized so that they can be traced through the production process.
Proper preparation includes checking dimensions, surface condition, straightness, and visible defects. Plates and sections are then marked or programmed for cutting. Efficient nesting can reduce material waste while maintaining the required grain orientation, edge quality, and component dimensions.
Accurate cutting is required for the main truss members, gusset plates, brackets, diaphragms, connection plates, and formwork support components. Computer-controlled cutting equipment can support consistent dimensions and repeatable production, particularly for components that are manufactured in pairs or used in symmetrical positions.
After cutting, edges may be cleaned, deburred, beveled, or prepared for welding according to the joint design. Holes for bolted connections and adjustment components should be positioned accurately. Proper hole alignment reduces assembly difficulty and helps ensure that forces are transferred through the intended connection surfaces.

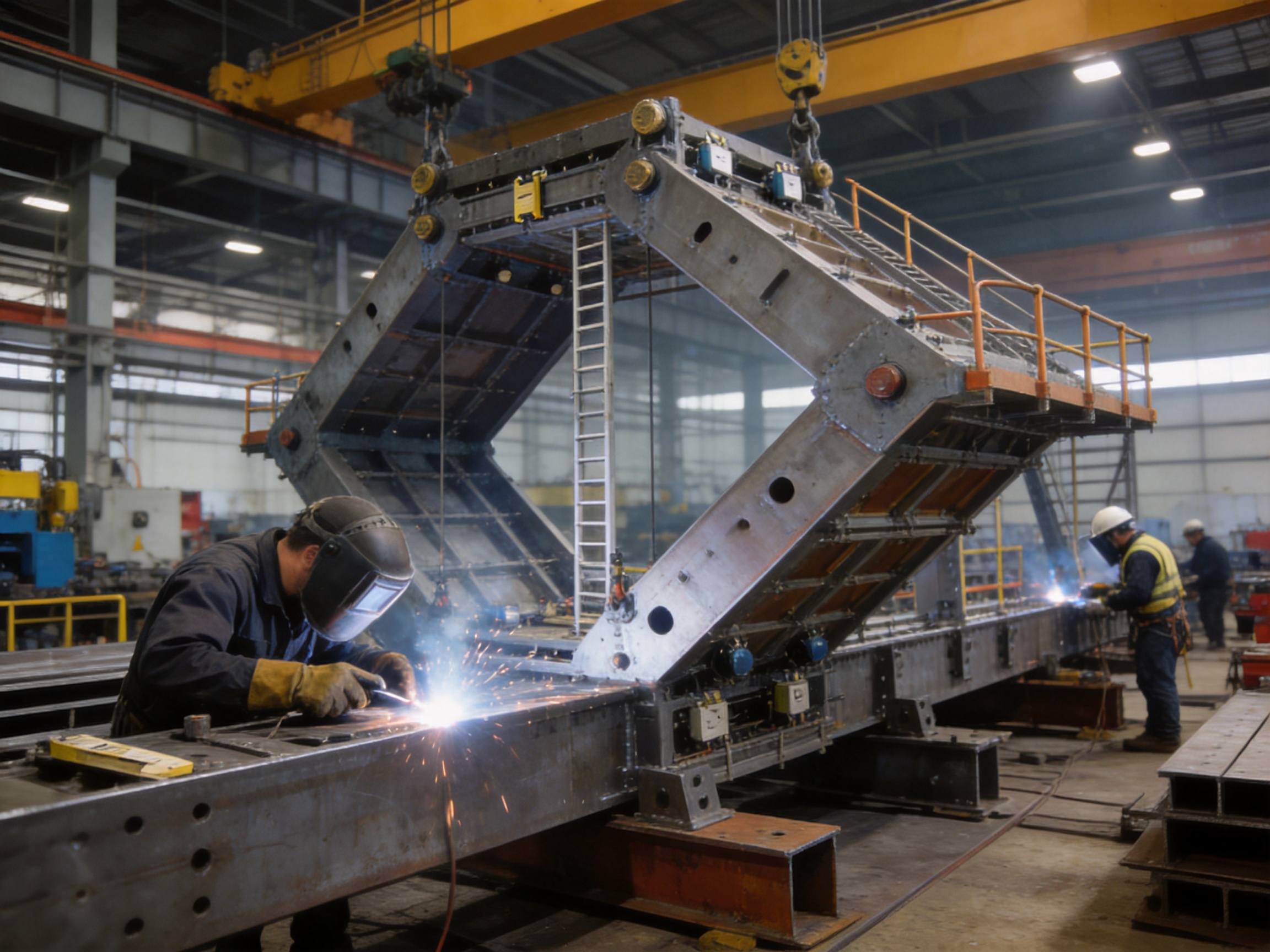

Welding is a central part of the manufacturing process for the traveler frame. Welding procedures should be selected according to material type, member thickness, joint configuration, and structural requirements. Welders should follow approved procedures, maintain suitable preparation and fit-up, and control heat input to reduce distortion.
Large frame members are assembled using jigs, temporary supports, or controlled positioning methods. These measures help maintain the designed geometry during welding. Welding sequence is also important because unbalanced heat input can cause angular distortion or residual deformation.
After welding, visual inspection is conducted to identify surface defects, incomplete fusion indicators, undercut, cracking, excessive reinforcement, or other unacceptable conditions. Where required by the project specification, additional non-destructive examination can be applied to selected welds or critical connections.
Dimensional control verifies that the completed components match the design drawings. Measurements may include overall length, width, height, diagonal dimensions, hole spacing, connection locations, member straightness, and interface geometry. These checks are particularly important for the rhombus-shaped main frame because deviations can influence assembly and movement.
A trial assembly may be performed in the workshop before delivery. This allows the production team to confirm the fit of major frame sections, connection plates, suspension components, platforms, guardrails, formwork supports, and adjustment devices. Trial assembly can reveal interference, missing parts, incorrect hole positions, or access problems before the equipment reaches the construction site.
For a project involving several identical or similar travelers, trial assembly also supports consistency between units. Components can be marked, recorded, and packed according to their assembly position. This reduces the time required for site identification and installation.
Steel bridge equipment is exposed to moisture, concrete slurry, dust, handling, and outdoor weather. Appropriate surface preparation and protective coating can help reduce corrosion and extend service life. Before coating, steel surfaces should be cleaned and prepared according to the selected coating system.
Coating selection depends on the project environment, expected service period, maintenance plan, and customer requirements. Areas subject to repeated contact, abrasion, concrete contamination, or movement may require special attention. Coating damage caused by transportation or assembly should be repaired before the traveler enters service.
Before shipment, the supplier checks the main components, connection accessories, adjustment devices, working platforms, safety equipment, identification marks, and documentation. Packing should protect machined surfaces, connection holes, coating systems, and smaller components during transport.
Large assemblies may be separated into transportable modules. The modular approach supports loading efficiency and makes it easier to move equipment to projects with restricted access. Lifting points and center-of-gravity information should be identified so that unloading and site assembly can be performed safely.
The manufacturing process is therefore not limited to cutting and welding. It includes engineering coordination, material control, precision fabrication, structural assembly, inspection, surface protection, logistics planning, and technical documentation. This integrated approach is one of the important strengths of a specialized bridge equipment manufacturer.
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. is located in Shangdang Town Industrial Park, Dantu District, Zhenjiang City, Jiangsu Province, China. Established in 2017, the company initially operated in the fields of construction materials, industrial materials, and metal processing materials. It has since developed into a comprehensive enterprise serving bridge and infrastructure construction.
The company’s business covers the design, manufacture, erection, and leasing of Bailey bridges, bridge launching gantry systems, hanging baskets, pier formwork, and various steel formwork products. This product range gives the company experience across several types of temporary and permanent-support-related bridge equipment.
Its main products include Bailey steel bridges, Type 321 Bailey truss sections, HD200 and Type 200 Bailey truss sections, triangular and diamond hanging baskets, bridge steel formwork, and related engineered steel structures. Experience with these systems supports a practical understanding of load transfer, modular fabrication, site assembly, temporary works, and construction sequencing.
For customers purchasing a Diamond Form Traveler, the company can provide more than a fabricated steel frame. Its services may include customized fabrication, design and system planning, erection assistance, technical support, quality management, and leasing options. This combination can be valuable for contractors that need equipment matched to a particular bridge rather than a general-purpose product.
The company’s location near major transportation routes, the Beijing-Hangzhou Grand Canal, Yangli Expressway, and Zhenjiang South High-Speed Railway Station supports convenient movement of materials, finished components, and technical personnel. Logistics planning remains an important part of any large steel equipment project, especially when modules must be shipped to distant construction sites.
Jinhao’s customer-first and pragmatic operating approach is reflected in its emphasis on practical engineering, product quality, technical coordination, and long-term cooperation. For international customers, clear drawings, component schedules, installation guidance, inspection records, and communication during the project are important parts of successful delivery.
Highway bridges often cross rivers, valleys, urban roads, and other transportation corridors where ground-supported falsework is difficult or disruptive. The Diamond Form Traveler allows contractors to construct box girder segments from the pier outward while keeping the area below relatively open.
For urban viaducts, this can reduce interference with road traffic and nearby facilities. For river crossings, it can reduce the need for temporary structures in the water. For mountainous bridges, it can avoid extensive scaffolding and temporary access roads on steep slopes.
Railway bridges require careful control of alignment, elevation, stiffness, and closure geometry. A stable traveler can support more consistent segment construction and help the contractor manage the repeated casting cycle. Because rail structures may have strict dimensional tolerances, the traveler’s adjustment and measurement procedures should be integrated with the project’s survey and quality-control plan.
Long river crossings may be affected by navigation requirements, changing water levels, currents, environmental restrictions, and limited access for temporary supports. Balanced cantilever construction with a Diamond Form Traveler can reduce the need for work in the river channel. The system can be adapted to the bridge’s structural geometry while supporting a controlled construction sequence above the water.
Some bridges include variable-depth girders, curved alignments, widened deck zones, complex pier heads, or special transition segments. These projects benefit from a traveler that can be adjusted to changing geometry. Customized formwork and connection arrangements can help the system accommodate the bridge design while preserving a repeatable operating method.
The precise operating sequence must be prepared and approved by the project’s engineering and safety teams. A typical cycle includes the following stages.
After the pier and initial box girder segments are completed, the traveler components are transported to the working area. The main frame is assembled according to the approved drawings and lifted or positioned using suitable site equipment. Connections, suspension devices, working platforms, and safety systems are installed and checked.
The external and internal formwork is connected to the traveler. Survey personnel then check the elevation, transverse position, longitudinal position, and required camber. Adjustment devices are used to bring the formwork into the correct casting position.
Reinforcement, prestressing ducts, drainage components, inserts, anchors, and other embedded items are installed. The construction team checks that the traveler and formwork provide sufficient working space and that no structural or temporary component interferes with the permanent bridge details.
Concrete is placed according to the approved sequence. Placement should be balanced and controlled to avoid sudden eccentric loading. The traveler, formwork, anchorage, and support points are monitored for unexpected movement or deformation. Personnel should maintain communication throughout the operation.
After casting, the concrete is cured according to the project requirements. The traveler remains secured while the segment develops the required strength. Release and forward movement should not begin until the responsible technical personnel verify that the concrete, prestressing, anchorage, and temporary support conditions are suitable.
The traveler is released in the specified sequence. Operators confirm that no temporary connection remains engaged and that all movement paths are clear. The forward movement system is then activated in a synchronized manner. The traveler advances to the next segment position while personnel monitor alignment, support reactions, clearances, and equipment behavior.
Once the traveler reaches its new position, it is anchored and locked. The frame and formwork are adjusted for the next casting cycle. Survey checks confirm that the system is positioned correctly. Only after the traveler is stable and the inspection is complete should the next round of reinforcement and formwork work begin.
A well-organized operating sequence improves safety and productivity. It also allows the contractor to identify problems early, maintain accurate records, and establish a repeatable cycle for the full length of the bridge.
The temporary nature of a form traveler does not reduce its structural importance. During construction, the traveler supports significant loads and operates at height. Safety management must therefore cover design, fabrication, assembly, operation, inspection, maintenance, and dismantling.
Before use, the main frame should be checked for deformation, cracks, loose bolts, damaged welds, corrosion, missing locking parts, and coating failure. Anchoring components should be examined for correct installation and adequate engagement. Hydraulic, mechanical, or sliding movement equipment should be inspected for leakage, damage, wear, and synchronization problems.
Working platforms must be clear, adequately supported, and protected by guardrails and toe boards where required. Access ladders, walkways, and lifting points should be positioned to prevent unsafe climbing or manual handling. Lighting and communication systems should be adequate for the work environment.
Weather conditions should be considered before movement or concrete placement. Strong wind, heavy rain, lightning, poor visibility, or other adverse conditions can increase risk. The project method statement should define when operations must be suspended and how the traveler will be secured during a stoppage.
Quality management should include inspection records for steel materials, welding, dimensions, trial assembly, coating, shipment, site installation, and operating cycles. Survey records should document the formwork position and any required correction. Monitoring deformation and movement over time can help identify maintenance needs before they become serious problems.
Training is also important. Operators should understand the traveler’s structure, anchorage method, movement sequence, load limitations, emergency procedures, and inspection requirements. Responsibility should be clearly assigned to the construction manager, equipment supervisor, survey team, safety personnel, and operators.
The economic value of a form traveler is determined by more than its purchase price. Contractors should consider the total construction cycle, assembly time, movement time, adjustment effort, maintenance requirements, transfer between bridge sections, and possible reuse on future projects.
The Diamond Form Traveler can support productivity through repeated casting cycles. Once the initial setup is complete and the team becomes familiar with the equipment, the traveler can be moved and adjusted according to a planned sequence. Synchronous movement and adaptable formwork can reduce unnecessary correction work between segments.
Low self-weight may reduce handling requirements during transport and installation. It can also reduce demand on the completed bridge and temporary anchorage system. Modular fabrication can make equipment easier to dismantle, transfer, and store.
Leasing is another option for contractors that do not require permanent ownership. A leasing arrangement can provide access to specialized equipment for a specific bridge project while reducing capital investment. The supplier’s involvement in inspection, technical support, and equipment transfer can help customers manage the system throughout the project lifecycle.
Maintenance should focus on moving parts, pins, bolts, adjustment devices, suspension components, walking surfaces, weld zones, and areas exposed to concrete contamination. Cleaning after each cycle can prevent concrete buildup from interfering with movement or adjustment. Damaged protective coatings should be repaired, and worn components should be replaced according to the maintenance plan.
Before ordering a Diamond Form Traveler, the purchaser should provide complete technical information. This normally includes general bridge drawings, cross-section details, segment lengths, concrete grades, construction loads, pier spacing, alignment data, casting sequence, and site access conditions.
The supplier should confirm the following points:
The maximum design load and load combinations for the traveler.
The required number of travelers and whether they will be used symmetrically on both sides of a pier.
The range of box girder cross-sections that the formwork must accommodate.
The movement method and available site power or lifting equipment.
The anchorage and suspension arrangement approved by the bridge designer.
The required working platforms, access systems, guardrails, and fall protection measures.
The transport dimensions and maximum module weight permitted by the site.
The corrosion protection and surface treatment requirements.
The inspection, commissioning, leasing, and technical support requirements.
Early technical coordination helps avoid late changes. It also allows the supplier to optimize the frame arrangement, determine the appropriate modular breakdown, plan the trial assembly, and prepare practical installation documentation.
The main purpose is to support formwork and construction loads during the balanced cantilever casting of concrete box girder bridge segments. After each segment reaches the required construction condition, the traveler moves forward and is prepared for the next segment.
The rhombus-shaped frame creates an integrated load-bearing arrangement with multiple structural members working together. This geometry is intended to provide high rigidity, efficient load transfer, and a favorable balance between stiffness and self-weight.
Yes. The system can be customized and adjusted for various irregular beam cross-sections. The achievable range depends on the bridge geometry, formwork arrangement, adjustment devices, and project-specific design verification.
It is designed for large-span, high-load, and complex-stress box girder construction. However, the final suitability must be confirmed through structural calculations and review of the bridge construction method, anchorage system, segment loads, and site conditions.
Its low self-weight is intended to minimize additional stress on the main bridge structure compared with heavier temporary systems. The complete load effect must still be calculated for the specific bridge and construction stage.
Synchronous movement helps keep the traveler frame and formwork aligned while the system advances. It reduces twisting, uneven support reactions, and positioning errors, making the transition between casting segments more controlled.
Depending on the project, the traveler can include working platforms, guardrails, toe boards, access ladders, locking devices, lifting points, inspection areas, and other protective systems. The final arrangement should comply with the project’s safety requirements and applicable regulations.
Yes. Customization may cover the main frame, formwork, suspension points, movement arrangement, platform layout, connection details, and transport modules. Custom design is particularly useful for bridges with variable dimensions or unusual site restrictions.
Important controls include engineering review, steel material verification, precision cutting, weld preparation, welding procedure control, dimensional inspection, trial assembly, coating inspection, component identification, and final packing checks.
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. provides services that include design and system planning, customized fabrication, erection, leasing, technical support, and quality management. The specific scope should be agreed during project contracting.
Leasing may be available for contractors that need the equipment for a defined construction period. Leasing terms, technical support, transport, maintenance, and site responsibilities should be clarified before mobilization.
The purchaser should provide bridge drawings, segment dimensions, concrete and reinforcement loads, construction sequence, cross-section variations, required quantity, site location, movement method, schedule, and any special safety or coating requirements.
The Diamond Form Traveler is a specialized solution for the balanced cantilever construction of large-span concrete box girder bridges. Its rhombus-shaped load-bearing frame provides a combination of high rigidity, efficient force transfer, and low self-weight. Precise synchronous forward movement supports reliable repositioning, while adaptable formwork arrangements allow the system to work with irregular and changing beam cross-sections.
Compared with basic or less integrated traveler arrangements, the Diamond Form Traveler offers a balanced set of advantages rather than relying on a single performance feature. Its structural efficiency can reduce additional stress on the completed bridge. Its controlled movement can improve construction accuracy. Its customized configuration can help contractors address complex geometry. Its integrated safety protection can support safer work at height.
The manufacturing quality of the equipment is equally important. Engineering review, material preparation, precision cutting, controlled welding, dimensional inspection, trial assembly, surface treatment, and organized delivery all contribute to dependable field performance. A specialized manufacturer with experience in Bailey bridges, bridge launching gantries, hanging baskets, pier formwork, and steel structures can provide valuable support throughout design, fabrication, erection, leasing, and operation.
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd. offers Diamond Form Traveler solutions for contractors and infrastructure organizations seeking customized bridge construction equipment. Through integrated fabrication and technical services, the company supports projects requiring reliable temporary works, adaptable structural systems, and practical construction planning.
For every project, final design approval, load verification, installation, operation, inspection, and maintenance must be completed by qualified engineering and construction personnel. When properly selected and managed, the Diamond Form Traveler can become an important productivity and quality-control tool for modern long-span bridge construction.
1. AASHTO. LRFD Bridge Construction Specifications. American Association of State Highway and Transportation Officials.
2. Fédération Internationale de la Précontrainte. Recommendations for the Design and Construction of Concrete Segmental Bridges.
3. fib. Model Code for Concrete Structures. International Federation for Structural Concrete.
4. EN 1090. Execution of Steel Structures and Aluminium Structures.
5. EN 1993. Eurocode 3: Design of Steel Structures.
6. International Labour Organization. Safety and Health in Construction.
7. Bridge construction method statements, temporary works design procedures, and equipment inspection practices used for balanced cantilever construction.
8. Manufacturer engineering information for Diamond Form Traveler systems, bridge steel formwork, cantilevered launching gantries, and related fabricated steel structures.
